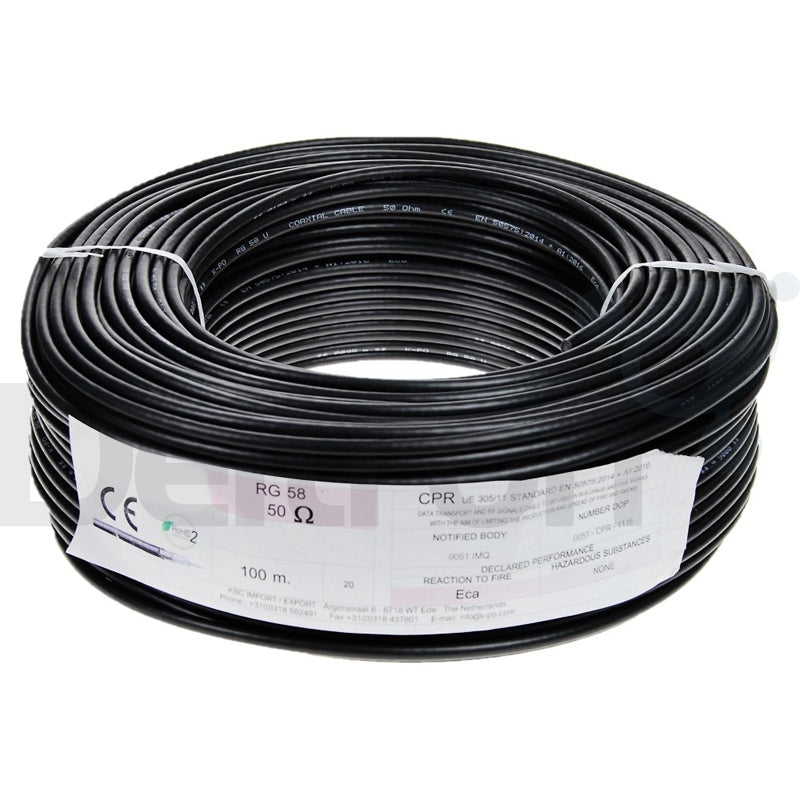

RG58 CU MIL-C-17 coax

• Plain copper inner conductor: 19 x 0,18 mm
• Low density polyethylene dielectric: ø 2.95 ± 0.10 mm
• Plain copper outer conductor: 144 x 0,10 mm
• Percentage coverage: 94%
• Non-contaminating polyvinyl-chloride sheath: ø 5.00 ± 0.10 mm
• Sheath color: Black - RAL 9004
• Copper weight: 1.51 kg (100m)
• Cable weight: 3.73 kg (100m)
• Impedance: 50 Ohm
• Capacitance: 100 pF/m
• Velocity ratio: 66%
• Inner conductor resistance: 36.5 Ohm/km
• Outer conductor resistance: 15 Ohm/km (braid)
• Temperature range: -30°C to +70°C

Attenuations dB/100m / Max. power rating W

• 5 MHz: 2.9 dB / 849 W
• 10 MHz: 4.3 dB / 600 W
• 30 MHz: 7.9 dB / 346 W
• 50 MHz: 10.2 dB / 268 W
• 150 MHz: 18.2 dB / 155 W
• 220 MHz: 22.2 dB / 128 W
• 450 MHz: 33.0 dB / 89 W
• 600 MHz: 38.9 dB / 77 W
• 800 MHz: 45.8 dB / 67 W
• 900 MHz: 48.9 dB / 63 W
• 1000 MHz: 52.4 dB / 60 W
