CGA SB2000 interface cable 13-pin Kenwood TK-570/TS-2000/TS-590
Delivery time:
Delivery time:
1-3 Business Days
CGA SB2000 interface cable 13-pin Kenwood TK-570/TS-2000/TS-590 is backordered and will ship as soon as it is back in stock.
Do you want to reliably connect your Kenwood transceiver to the CGA SB2000MK2 interface? With this CGA 13-Pin Kenwood interface cable, you can easily make the right connection between the SB2000MK2 and various Kenwood transceivers with a 13-pin connector. A practical solution for radio amateurs who want to connect their equipment neatly and reliably.
The right cable for your CGA SB2000MK2
The CGA SB2000MK2 is a compact interface that allows you to connect a computer and radio transceiver. This enables you to use digital modes and control various functions of your transceiver, such as RTTY, PSK31, SSTV, FAX, and CW.
To connect the interface to a suitable Kenwood transceiver, you naturally need the right cabling. This 13-pin data cable is specifically designed as an accessory for the CGA SB2000MK2 and provides the connection to compatible Kenwood transceivers.

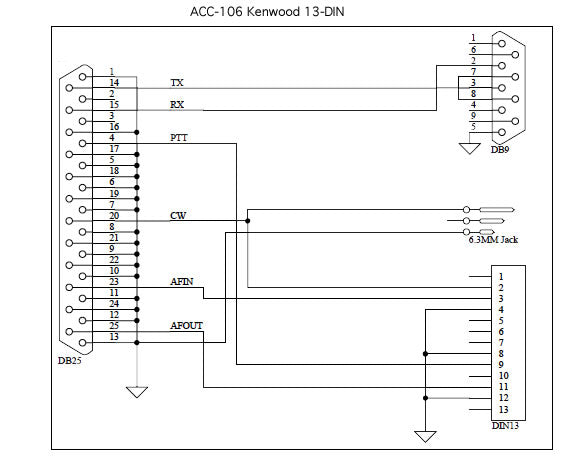

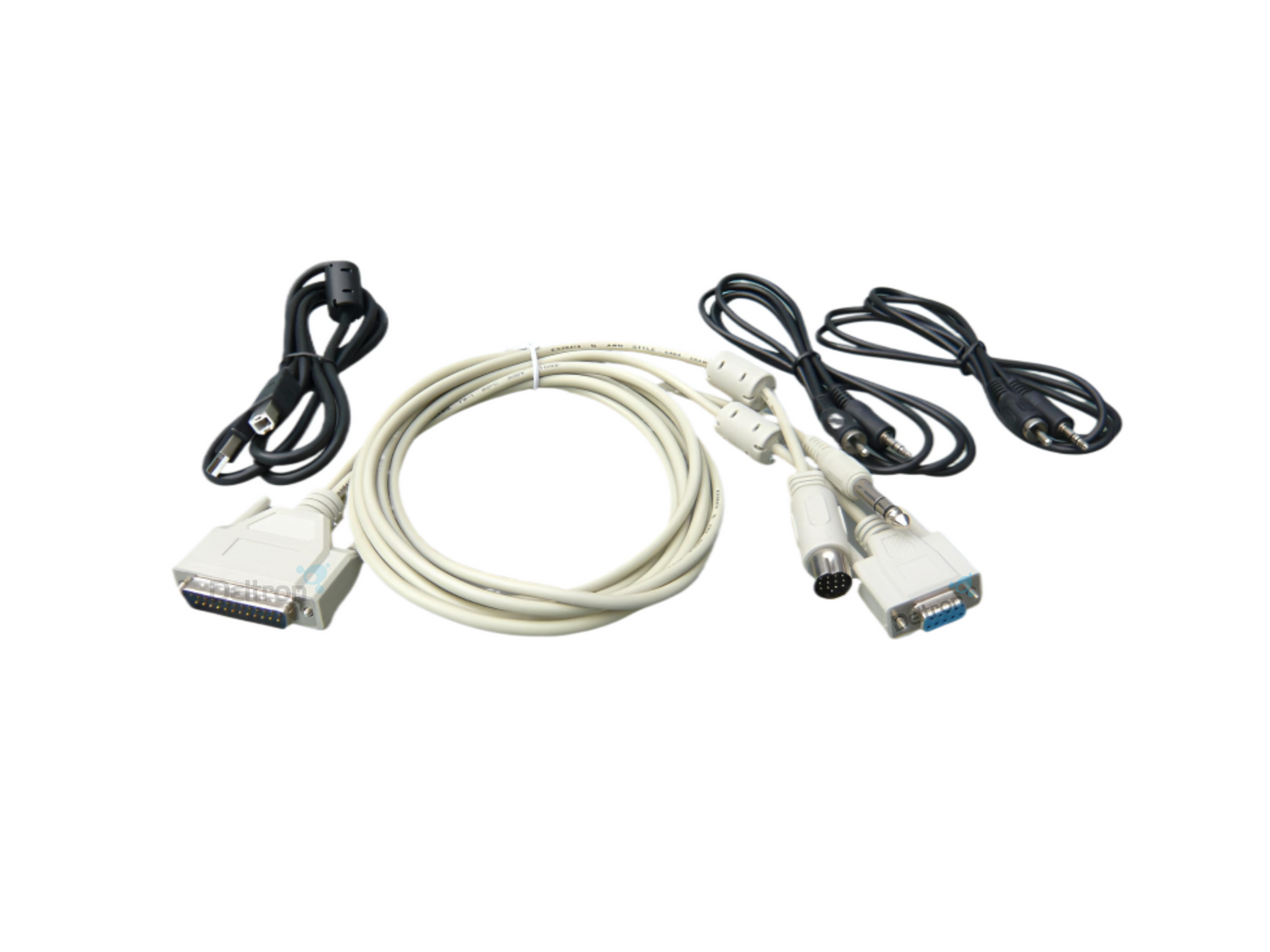

The cable set includes a 13-pin data cable, a DB9 COM CAT cable for the RS232 protocol, and a 1/8 inch connection for CW. This provides the connections needed to use the SB2000MK2 in combination with a suitable Kenwood transceiver.
Which Kenwood transceivers is this cable suitable for?
According to the available product information, this CGA 13-Pin Kenwood interface cable is suitable for several popular Kenwood models, including the TS-570, TS-2000, TS-590, TS-990, and TS-870S.
This makes this cable interesting if you are already using a CGA SB2000MK2 and are looking for suitable cabling for your Kenwood. You don't have to search for various individual cables; instead, you can directly choose a cable set compiled for this application.
Key features:
- Suitable as an interface cable for the CGA SB2000MK2
- 13-pin data cable for compatible Kenwood transceivers
- DB9 COM CAT cable with RS232 protocol
- 1/8 inch connection for CW
- Suitable for Kenwood TS-570, TS-2000, TS-590, TS-990, and TS-870S
Interface cables for other transceivers also available
Are you using a different radio? Other interface cables are also available for the CGA SB2000MK2 for various transceivers from Icom, Kenwood, and Yaesu, among others. This allows you to choose the cabling that suits your specific equipment.
Order the CGA 13-Pin Kenwood interface cable and reliably connect your compatible Kenwood transceiver to your CGA SB2000MK2.
We also have interface cables for other models for the SB2000MK2:
- CGA ACC-101: Yaesu FT-1000MP(MK-V, MK-V Field), FT-2000, FT-9000(DX).
- CGA ACC-102 for Icom with 8-pin ACC connector: Icom IC-746(Pro), IC-7400, IC-756xxx (Pro, Pro2, Pro3), IC-7600, IC-7700, IC-7800 and practically all recent Icom desktop transceivers.
- CGA ACC-103 for Icom with 13-pin ACC connector: Icom IC-703, IC-706(MK2, MK2G, IC-717, IC-78) IC-718, IC-703, IC-706, IC-7000, IC-7200, IC-7100.
- CGA ACC-104: Yaesu FT-45, FT-950, Yaesu FT-450 and FT-950 and FT-DX3000D (for Yaesu FT-847 see note*).
- CGA ACC-105: Yaesu FT-100(D), FT-817, FT-857(D), FT-897(D).
- CGA ACC-107: Kenwood TS-480SAT and TS-480HX.
*Please note when using on VHF and UHF
Some transceivers that support both HF and VHF, such as the Icom IC-746 and IC-7400, have separate PTT lines for HF (HSEND) and VHF (VSEND).
The CGA SB2000MK2 by default only controls the HSEND line. Without modification, the interface can therefore only be used for transmitting on HF with these transceivers.
If you want to use the CGA SB2000MK2 for VHF/UHF as well, an adjustment to the transceiver or interface connector is necessary. Here, HSEND and VSEND must be controlled simultaneously by connecting both terminals together.
With transceivers such as the Icom IC-706Mk2G and IC-7000, this works differently. With these models, a setting can be adjusted via the menu so that HSEND also activates transmission on VHF and UHF.
Therefore, always check the settings and connection options of your specific transceiver before use.
