Comet CTC-50M window and door duct

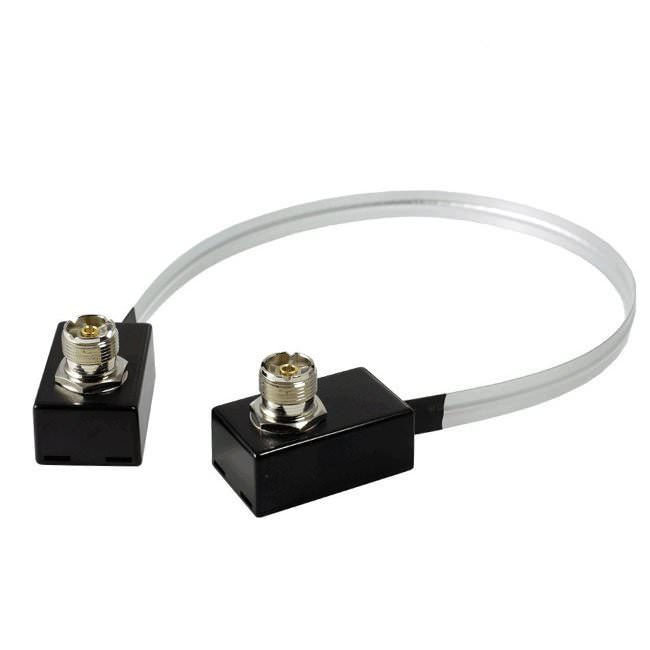

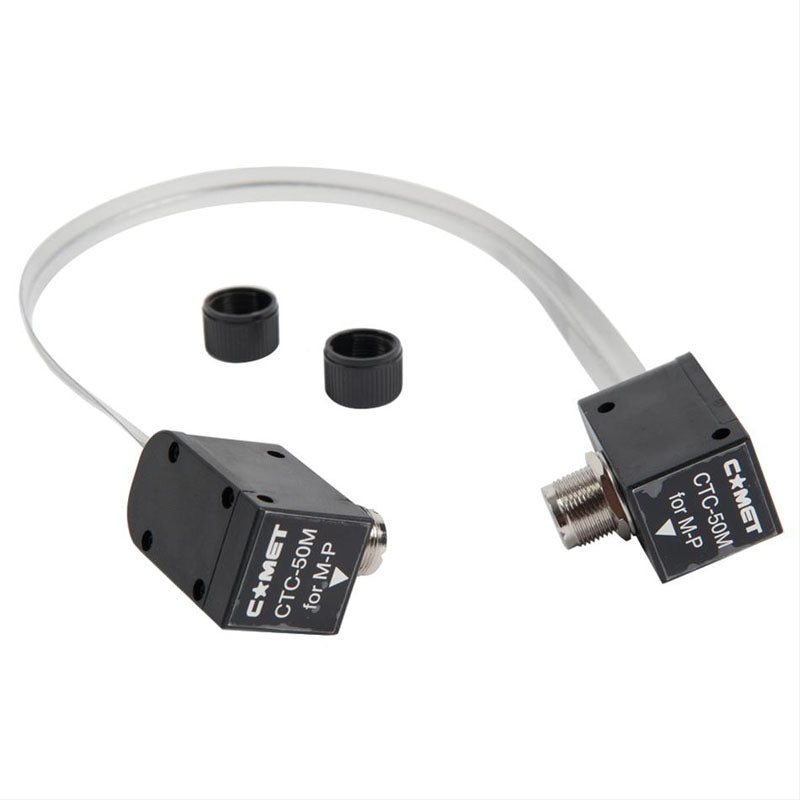

Comet CTC-50M window and door feed-through cable for antenna (coax) cables

The Comet CTC-50M offers an innovative solution for bringing in aerial coaxial cables without having to drill holes in your walls or leave windows and doors open. The sleek, flat design allows the cable to fit easily between window or door frames, allowing your coaxial cable to be safely and efficiently routed indoors.

The core of this flat coaxial cable is made of copper-clad steel, chosen for its strength and resistance to metal fatigue. The outer shell is made of ALPET (aluminum/PET plastic), which provides additional protection against material fatigue damage. The cable is equipped with 25k gold-plated SO-239 connectors on both ends, which can be securely attached to the window frame without damaging the cable using the supplied screws.

• Frequency range: DC - 1300 MHz
• Connectors: Gold-plated SO-239 (PL) UHF-Female)
• Length: 38.1 cm
• Maximum Power:
  HF/50 MHz: 100W PEP
  144 MHz: 60W FM
  430 MHz: 40W FM
  1200 MHz: 10W FM
• VSWR:
  <500 MHz: 1.3:1
  500 MHz: 1.5:1
• Loss:
  DC - 500 MHz: 0.5 dB
  500 - 900 MHz: 1.3 dB
  900 - 1300 MHz: 1.8 dB
• Impedance: 50 Ohm
