Foot pedal set 27MC hands-free Midland/President

Foot pedal set for 27MC radio – professional hands-free communication for cranes and machinery

This professional foot pedal set for 27MC radios offers a reliable and safe solution for hands-free communication in vehicles, machinery, and industrial applications. The set has been specifically developed for users who need to keep their hands completely free for operating machinery, vehicles, or lifting equipment during their work.

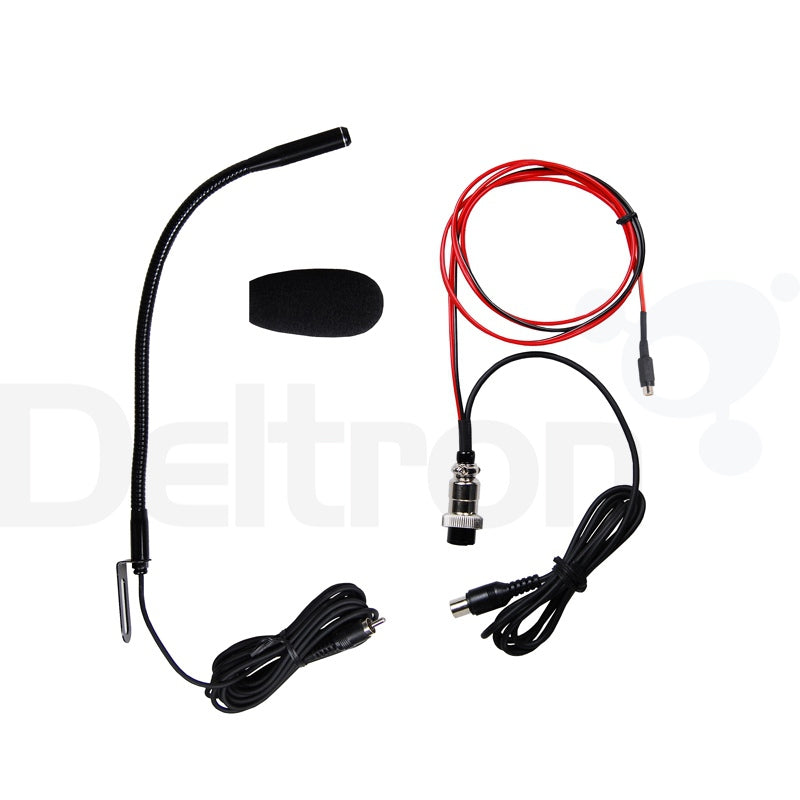

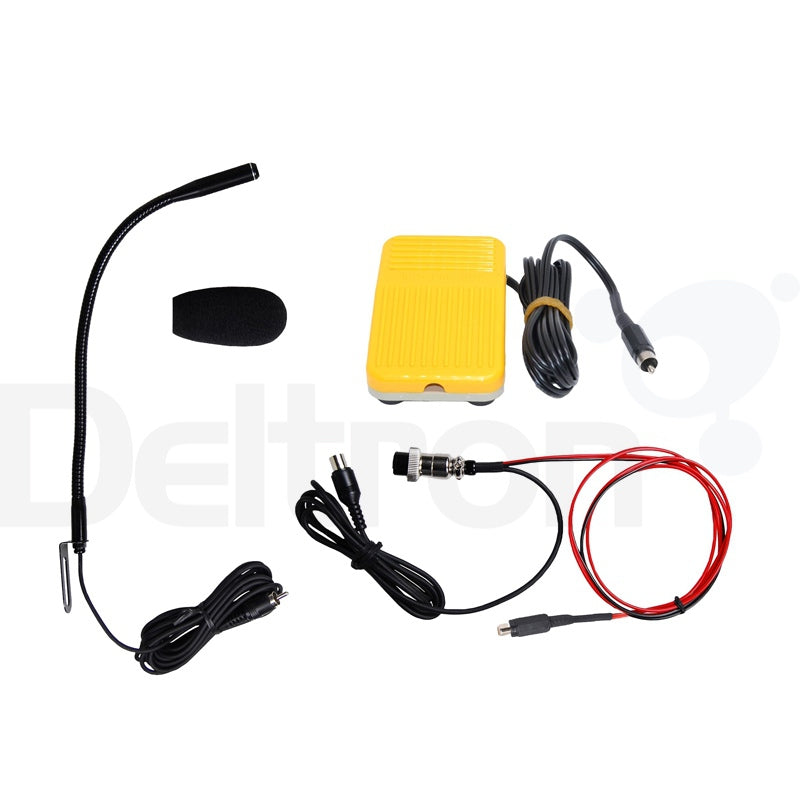

The set consists of a foot pedal, a flexible gooseneck VOX microphone, a windshield for optimal speech quality, and a connection cable with a switch wire. Pressing the foot pedal immediately switches the radio to transmit mode (TX). As soon as the pedal is released, the radio automatically switches back to receive mode (RX).

Available in two versions

Depending on the application and working environment, you can choose from two different versions:

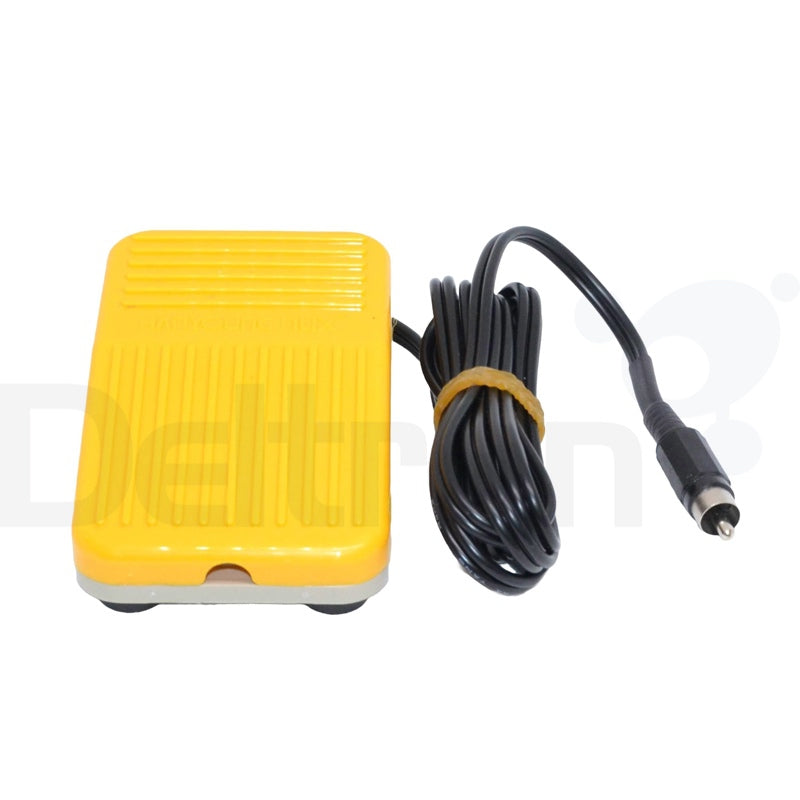

• Foot pedal set with yellow plastic foot pedal
• Foot pedal set with orange aluminum foot pedal

Both versions offer the same reliable operation. The aluminum pedal is particularly suitable for intensive professional use and heavy working conditions, while the plastic version is an excellent choice for daily use in vehicles and machinery.

Ideal for cranes, work vehicles, and industrial applications

This semi-hands-free foot pedal set is widely used in mobile and stationary crane installations where safe communication is essential. This includes:

• Mobile cranes

• Truck cranes

• Crawler cranes

• Mobile tower cranes

• Construction cranes

• Industrial lifting installations

• Transshipment and harbor cranes

In addition, this foot pedal set is excellently suited for machinery and vehicles within:

• Earthmoving

• Agricultural sector

• Mining

• Railway sector

• Transport and logistics

• Industry and machine building

Thanks to hands-free operation, operators, crane operators, and vehicle operators can communicate safely without interrupting their work.

Easy installation and ready to use

The set is designed for easy installation and quick setup. Thanks to the 6-pin connector, this foot pedal set can be directly connected to various Midland and President CB radios that use a dynamic DNC 520 or DNC 520 U/D microphone.

If you connect the foot pedal to the switch wire, you will have a total length of 250 cm, which normally provides sufficient flexibility to mount the microphone and foot pedal in the desired position.

Need a longer cable to connect?

If the cable length is too short, you can extend the cable using the required length of 2-core cable and a solderable Female RCA plug (phono) and a Male RCA plug.

1. You keep the 2-core cable attached to the foot pedal.
2. You take a new piece of 2-core cable of the desired length.
3. Solder a Male RCA plug to one end of the 2-core cable and a Female RCA plug to the other end.
4. The extension is ready and can be easily connected between the foot pedal and the switch wire.

Key advantages

• Professional hands-free operation of your 27MC radio

• Increases safety when working with machinery and vehicles

• Available with plastic or aluminum foot pedal

• Flexible gooseneck microphone for optimal positioning

• Simple plug-and-play installation

• Ideal for crane and machine control

• Suitable for intensive daily use

Available parts and accessories

• Foot pedal plastic yellow with 150cm 2-core wire without RCA plug
• Foot pedal aluminum orange with 150cm 2-core wire without RCA plug
• RCA Phono Plug Set
• RCA Male Phono Plug (male) red
• RCA Female Phono Plug (female) red
• RCA Male Phono Plug (male) black
• RCA Female Phono Plug (female) black

• Gooseneck/swan neck windshield
• Gooseneck set MS-5 Midland/President 6-pin

Technical specifications

• Foot pedal set

• Semi hands-free communication system

• Transmit (TX) via foot pedal

• Automatic switch back to receive (RX)

• Flexible gooseneck VOX microphone

• Includes windshield

• Foot pedal cable length: 150 cm

• Switch wire cable length: 100 cm
• 6-pin connection

• Includes switch wire
• Robust industrial design

Compatibility

Suitable for various Midland Alan and President CB radios with dynamic DNC 520 or DNC 520 U/D microphone.

Among others, compatible with:

• Midland Alan 48 Series:
  • Midland Alan 48 Excel

  • Midland Alan 48 Plus

  • Midland Alan 48 Pro

  • Midland 88
• Midland Alan 78 Series:

  • Midland Alan 78 Plus

  • Midland Alan 78 Pro

• President Series:

  • President Andy

  • President Barry ASC / Barry II ASC

  • President Grant II ASC

  • President Harrison II ASC

  • President Harry II ASC / Harry III ASC

  • President Henry ASC

  • President Jackson II

  • President JFK II

  • President Johnny II / Johnny III

  • President Johnson II / Johnson II VOX

  • President Martin ASC

  • President McKinley

  • President Richard

  • President Ronald

  • President Taylor II Classic / Taylor III ASC / Taylor IV AS

  • President Tommy

  • President Truman

  • President Walker II ASC

  • President George II ASC

Please note:

Always check if your 27MHz transceiver is suitable for the foot pedal set before purchasing the set. Are you unsure which set to order or do you have a question? Please send an email to support@deltron.nl.

Also available: hands-free set for joysticks

For professional applications in mobile machinery and work vehicles, complete hands-free sets are also available that can be integrated directly into the joystick control of machines. These solutions are widely used in cranes, earthmoving machinery, agricultural vehicles, and other professional vehicles where maximum operating freedom and safety are desired.

Safe and efficient communication during work

Whether you work on a construction site, in the harbor, on the railway, or in the agricultural sector, reliable communication is essential. With this professional foot pedal set, you keep both hands free for your work while maintaining direct contact with colleagues, operators, or traffic controllers.

Choose the version that suits your application and experience the convenience of professional hands-free communication.
