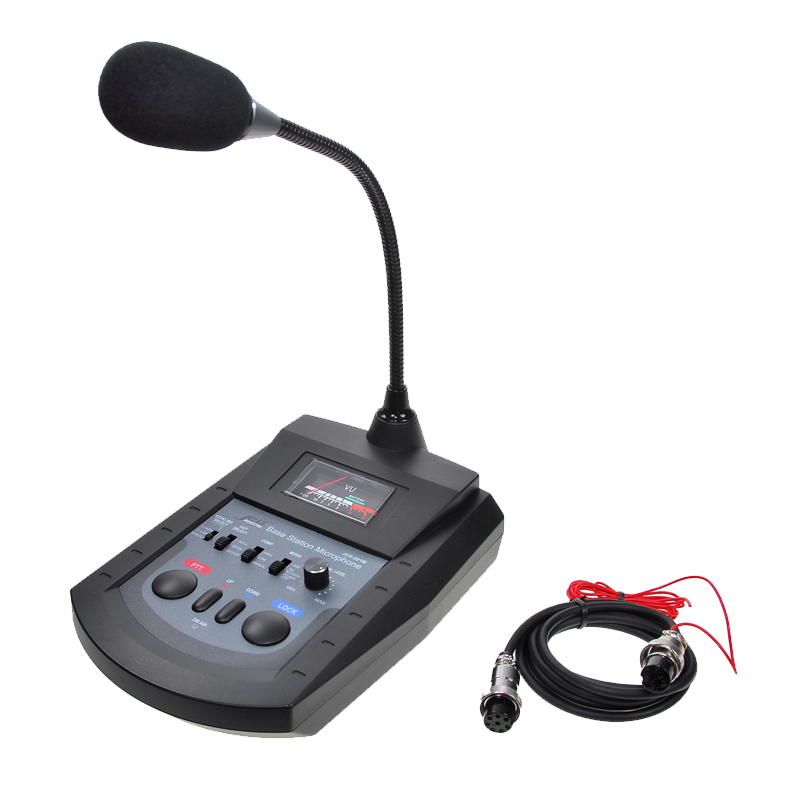

JCD 201M 6-Pin

The JCD 201 M is a robust table microphone equipped with echo and a compressor. The JCD 201 M has two outputs so that you can control two transceivers with a table microphone. On the JCD 201 M table microphone you can easily choose between transceiver A or B. The JCD 201 M table microphone is equipped with a sensitive electret condenser microphone element and high-quality compressor, which ensures optimal audio compression. JCD 201 M table microphone is ideal for use in SSB modulation to significantly improve intelligibility with weak signals. The compressor has a SSB and FM preselection and can also be set manually. At the back you can also connect a foot switch pedal, which ensures that you can communicate hands-free, ideal for use in a central control room, fixed post or radio shack where you want to have your hands free. Due to the JCD 201 M table microphone design, the JCD 201 M table microphone is easy to operate. Readout with a clear VU meter and PTT lock with timer makes the JCD 201 M table microphone very usable. The JCD 201 M table microphone is supplied with a 6-pin connection cable as standard.

Technical features JCD-201M Table Microphone:

• Clear VU meter


• Compressor for use in FM and SSB


• Adjustable compressor


• TOT function gives an alarm after, for example, transmitting for more than 30 seconds


• Gain of up to 45db with compressor


• Two microphone outputs where you can switch between a and b


• PTT button


• PTT lock


• Foot pedal connection


• UP/Down function for transceivers that support this


• Black gray


• Complete with cable and 6 pin connector


• Sturdy housing


• Works on 3x AAA Batteries. (CB version only on 12 Volt)

Connection diagram of the standard JCD 201 M table microphone:

1. Modulation


2. RX


3. TX


4. UP/DOWN


5. Ground


6. Empty

Suitable for Midland 48 Pro (not suitable for the old versions of the Midland 48)
