Procomm JBC985-3P
Delivery time:
Delivery time:
1-3 Business Days
Procomm JBC985-3P is backordered and will ship as soon as it is back in stock.
About this product
About this product

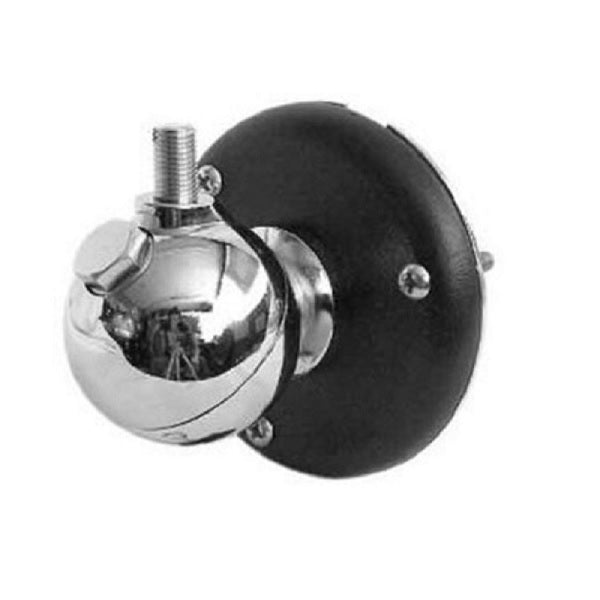

Heavy Duty Ball Mount Procomm JBC985-3P (UHF-Female)
• Connection: UHF-Female Connection
• Mount Diameter: 9cm (3.5 inches)
• Mount: 3/8x24 Thread-Female
FEATURES, FUNCTIONS AND SPECIFICATIONS:
• Heavy Duty Ball Mount
• 9cm (3.2 inches) Black Mounting Plate
• With UHF-Female (SO-239) Connector
• Can be used with 3/8x24 Thread Whips (Both Male and Female end)
• Stick from 3/8x24 Thread can be removed from the ball to connect Male Whips

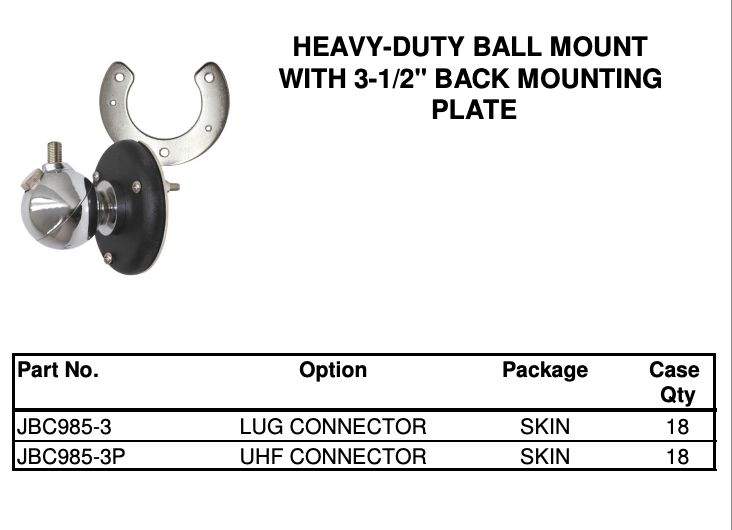

Two versions:
• JBC985-3 = With Lug Connector
• JBC985-3P With UHF-Female Connector
Packing includes:
1 Pc of Ball Mount
1 PC or User Manual in English
Available Accessories:
JBC305 = Heavy Duty Spring
PRC JBC9853P
Assembly instructions
Ball Mount Instructions for JBC985-3/3P
1. Using the backing plate locate the 3 3/16"
holes on the vehicle. Locate the holes in an
area where you can gain access to the inside to
tighten the 10x32" nuts.
2. Drill 3 3/16" to 1/4" holes.
3.Locate the center hole for the 1/4" nut. Drill
approximately a 1" hole.
4. Remove the 3 10x32 nuts, bolts, and washers
5. Remove the backing plate and rubber gasket.
6. Insert 2 bolts into the mount and rubber
gasket and extend them through the holes
drilled in the vehicle.
7. From inside the vehicle add the washers and
2 10x32" nuts. Tighten the 2 10x32" nuts with a
5/16" wrench.
8. With the coaxial cable strip 2" of the black
jacket off and separate the braid from the
center conductor. Strip about 1/4" of insulation
off the center conductor.
9. Using the 2 terminals supplied with the
mount, crimp or solder them on the center
conductor and the braid.
10. Connect the terminals to the mount. The
center conductor to the center bolt. The braid to
the 10x32 bolt on the backing plate.

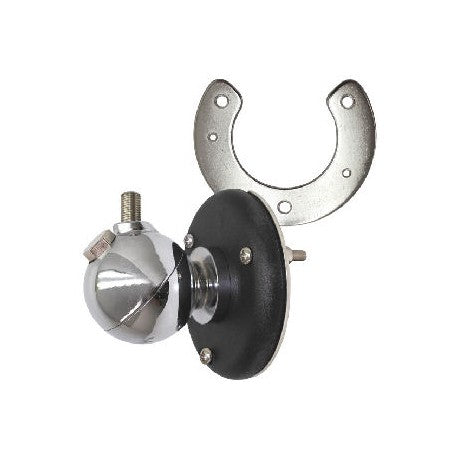

Note: The horse shoe backing plate may be
used to give the mount added strength.
- Heavy Duty Ball Mount for Antennas
- 9 cm (3.2 inch) black mounting plate
- With UHF-Female (SO-239) Connector
- Can be used for 3/8x24 thread Whips (both Male and Female ends)
- The tube for 3/8x24 thread mounting can be removed from the ball to allow for the mounting of a male antenna.
Available in 2 versions:
- JCB985-3 with Lug Connector
- JCB985-3P with UHF-Female Connector
Package contents
- 1 x Procomm JBC985-3P antenna mount
- Manual in English
