Procomm JBC985-3P UHF-Female

The Procomm JBC985-3P antenna mount is a robust and professional Heavy Duty Ball Mount for securely mounting mobile antennas on vehicles, trucks, off-road vehicles or other mobile applications. Thanks to its solid construction and reliable fastening, this mounting base is ideal for users who expect maximum stability and durability from their antenna installation.

This version of the Procomm JBC985 features a UHF-Female (SO-239) connector and supports antennas with a 3/8x24 connection. This makes the antenna mount compatible with a large number of mobile CB, HF, and communication antennas.

The sturdy black 9 cm mounting plate provides a stable base, even for larger antennas or intensive use on the road. Thanks to its clever design, the 3/8x24 mounting tube can be easily removed to also mount antennas with a male connection. This makes the antenna mount extra versatile in use.

Why choose the Procomm JBC985-3P?

A good antenna mount forms the basis of a reliable mobile installation. The Procomm JBC985-3P is designed for users who need a sturdy, durable, and professionally finished mounting solution.

Thanks to its Heavy Duty construction, the mount remains stable under harsh conditions, such as high speeds, vibrations, or intensive daily use. The integrated UHF-Female connector also ensures a reliable coax connection with minimal signal loss.

Advantages of the Procomm antenna mount

• Heavy Duty Ball Mount for secure mounting

• Equipped with UHF-Female (SO-239) connection

• Suitable for 3/8x24 antennas

• Sturdy black 9 cm mounting plate

• Suitable for both male and female antennas

• Ideal for mobile communication installations

Application

The Procomm JBC985-3P antenna mount is perfect for mounting on trucks, off-road vehicles, campers, commercial vehicles, and other vehicles where a reliable antenna installation is necessary.

Thanks to the sturdy ball mount, the antenna can be flexibly positioned for optimal performance and ease of installation. The construction is designed to withstand weather influences, vibrations, and intensive use on the road for a long time.

For additional damping and protection, this antenna mount can be combined with the optional JBC305 Heavy Duty Spring.

Optionally available

• Procomm JBC305 heavy duty antenna spring

Choose a reliable and professional mounting solution with the Procomm JBC985-3P antenna mount. Perfect for users who want to mount their mobile antenna installation securely, safely, and durably.

Installation Guide for the Procomm JBC985-3P Ball Mount

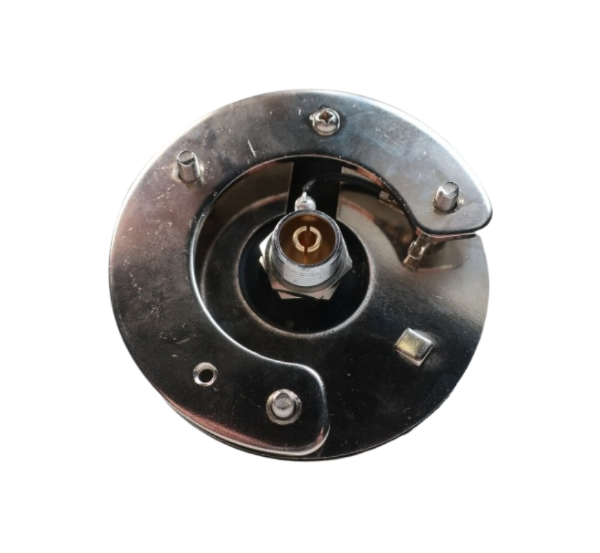

1. Use the included backing plate to mark the mounting holes on the vehicle. Choose a spot where you also have good access from the inside to tighten the nuts.

2. Then drill the mounting holes of approximately 3/16" to 1/4". Then determine the center point for the central opening and drill a hole of approximately 1 inch for cable routing and fastening.

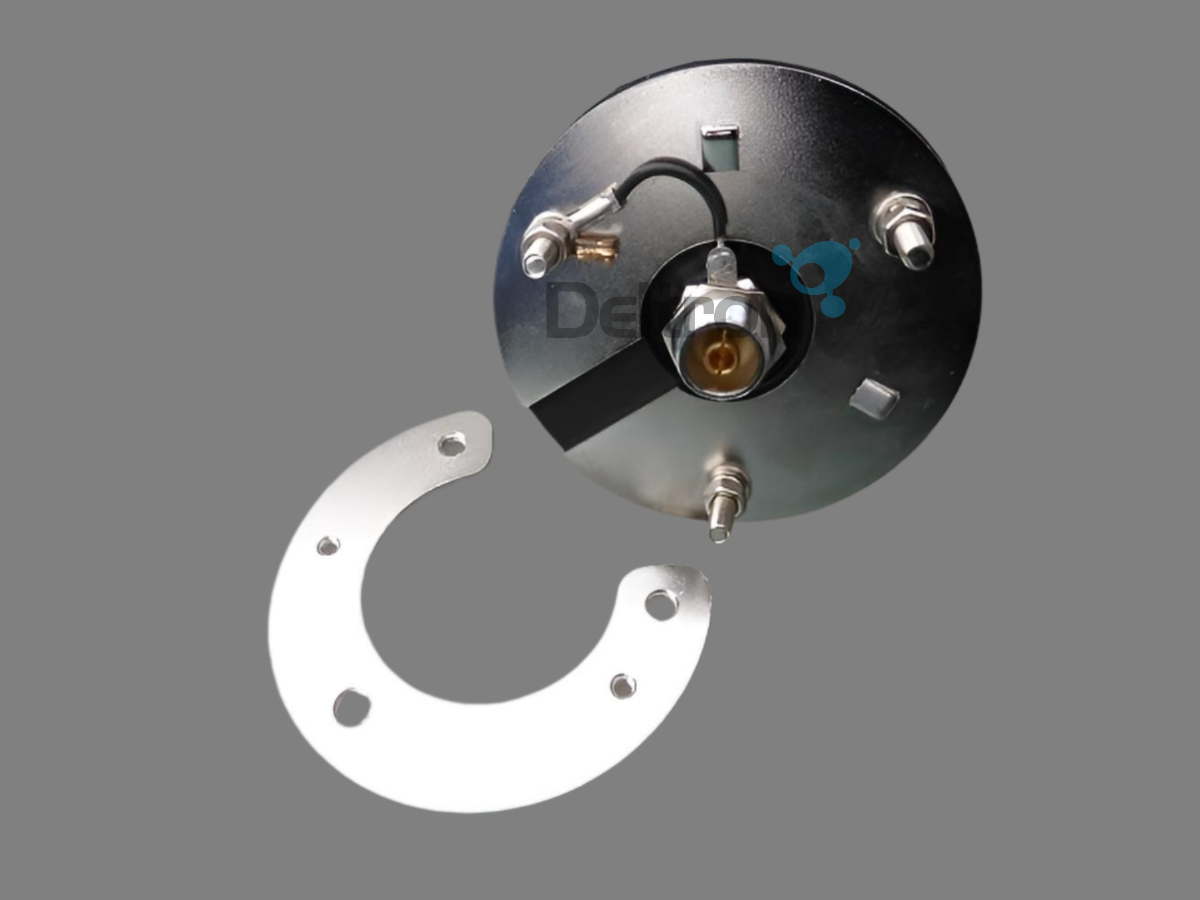

3. Remove the three 10x32 nuts, bolts, and washers from the antenna mount.
   Then detach the backing plate and rubber seal from the mounting base.

4. Place two bolts through the antenna mount and rubber gasket and insert them through the drilled holes in the vehicle.

5. On the inside of the vehicle, mount the washers and the two 10x32 nuts.
6. Tighten these securely with a 5/16" wrench.

7. Strip approximately 5 cm of the outer jacket of the coax cable and separate the shielding from the inner conductor. Then strip approximately 6 mm of insulation from the inner conductor.

8. Use the included connection terminals and attach them by crimping or soldering to both the inner conductor and the shielding of the coax cable.

9. Then connect the connectors to the antenna mount:

10. The inner conductor is connected to the center bolt.

11. The shielding is connected to the 10x32 bolt of the backing plate.
