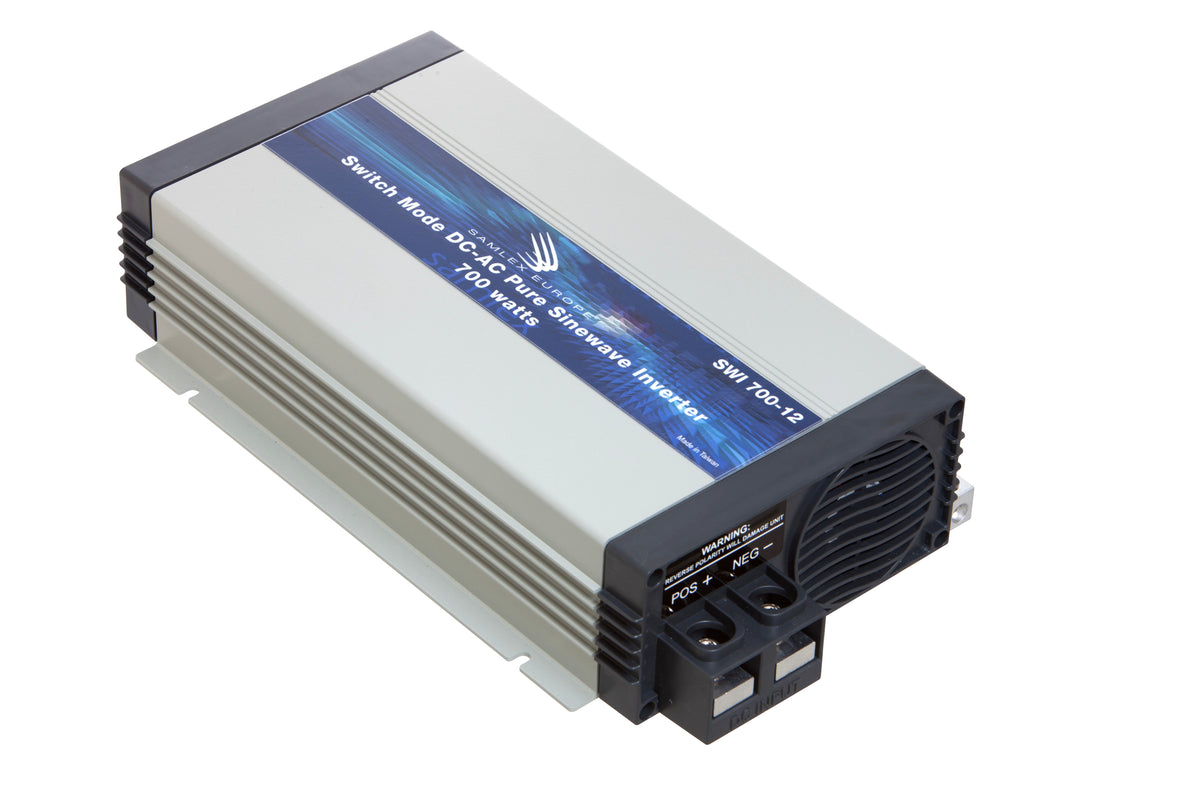

Samlex pure sine wave inverter 12V to 230V 700W
Delivery time:
Delivery time:
1-3 Business Days
Samlex pure sine wave inverter 12V to 230V 700W is backordered and will ship as soon as it is back in stock.
Do you want to use standard 230V equipment from a 12V battery system? This Samlex SWI 700-12 inverter converts 12V DC into 230V AC with a pure sine wave. With 700 watts of continuous output power and a peak power of up to 1400 watts, this inverter is suitable for various applications where a fixed 230V mains connection is not available.

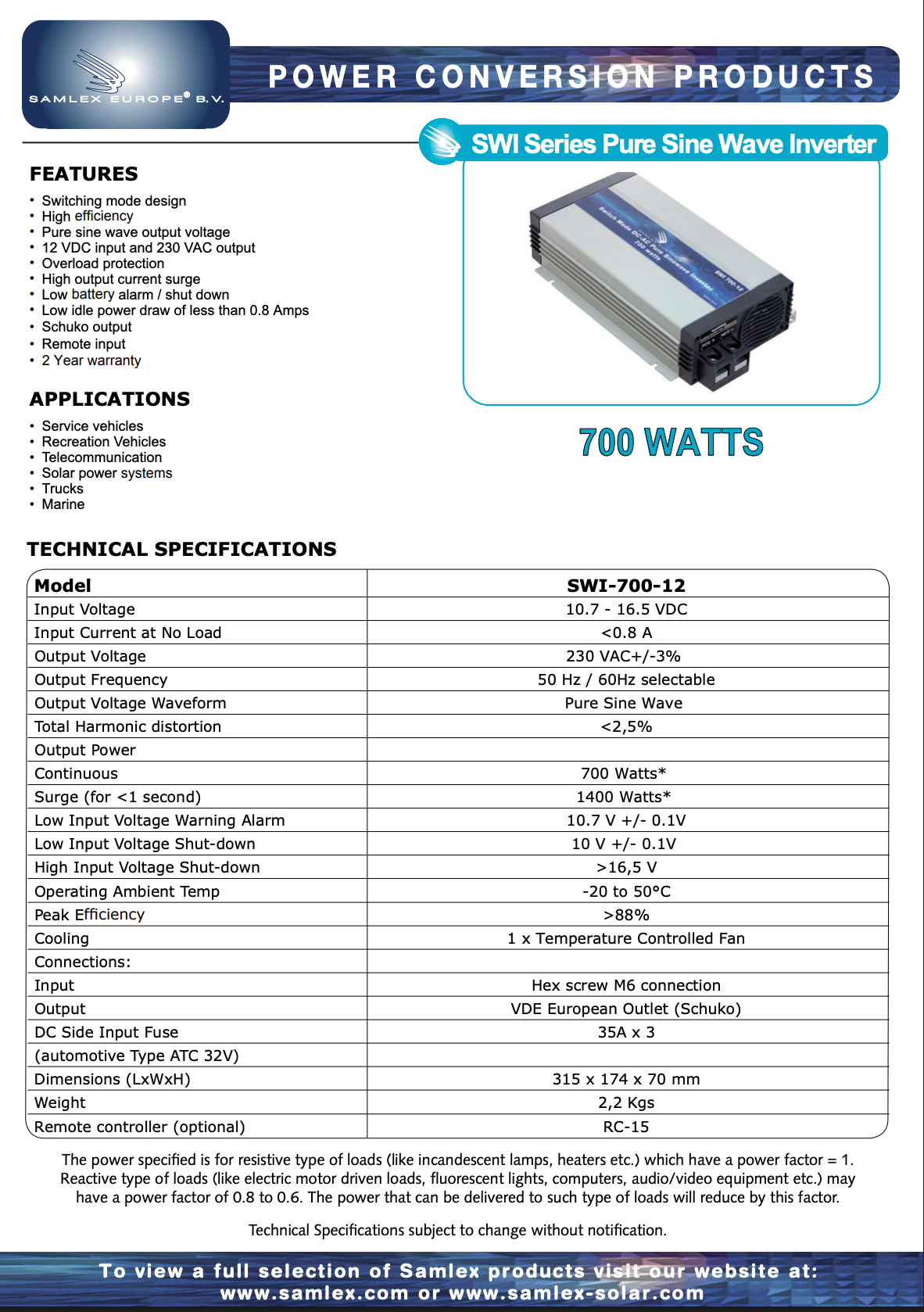

The inverter has an input voltage range of 10.5 to 16.5V DC and delivers 230V AC ±3%. On the front, there is a European VDE socket where you can connect suitable 230V equipment.
With protections against under- and overvoltage, overload, overtemperature, and short circuit, this pure sine wave inverter is designed for reliable power supply from a suitable 12V battery system.
What does a Samlex 12V to 230V inverter do?
A Samlex inverter makes it possible to use 230V equipment in places where you only have access to a 12V battery or battery bank.
The inverter converts the direct current from the 12V system into 230V alternating current. This allows you to use suitable equipment that is normally plugged into a wall outlet in, for example, a camper, boat, or vehicle.
The continuously available output power is 700 watts. For short-term power spikes, a peak power of up to 1400 watts is specified.
Why choose a pure sine wave inverter?
An important feature of this Samlex is its pure sine wave output voltage.
A pure sine wave approximates the waveform of the regular electricity grid, making it suitable for a wide range of 230V devices, provided they fall within the power specifications of the inverter.
This makes this model attractive when you want to connect not just simple electrical appliances, but create a versatile 230V power supply from your 12V installation.
When selecting equipment, always pay attention to both the normal power consumption and any potential inrush current. Devices may temporarily require significantly more power during startup.\
Where can you use this 12V Samlex inverter?
This version is intended for applications where a suitable 12V DC power supply is present and 230V AC is required.
For example:
- In a camper, caravan, or other recreational vehicle with a suitable 12V battery system
- On board a boat with a 12V electrical installation
- In a commercial vehicle or service van for mobile 230V power supply
- For autonomous and mobile installations requiring 230V from a battery
- For suitable 230V equipment up to a maximum of 700 watts continuous power
What protections does this Samlex inverter have?
When converting battery voltage to 230V, proper protection is important. This Samlex therefore features several integrated safety functions.
The inverter is protected against low input voltage, high input voltage, overtemperature, overload, and short circuit. In the event of a low battery voltage, the inverter also has an alarm and shutdown function.
LED indicators provide information about the operation and safety status of the device. This makes it easier to see during use whether the inverter is functioning normally or if a protection mechanism has been activated.
Low self-consumption from the battery
When used in a camper, boat, or vehicle, the energy for the inverter comes from the battery. Therefore, the inverter's own power consumption also plays a role.
For this Samlex, a standby current of less than 0.7 amps is specified. The inverter also uses an efficient switch-mode construction.
The output frequency is adjustable to 50 or 60 Hz, so it can be adapted to the requirements of the connected equipment and installation.
Easily connect 230V equipment
On the front of the inverter, there is one European VDE 230V socket. This allows suitable equipment to be connected directly to the inverter.
The Samlex also features a remote input. The Samlex RC15 remote control is available as an optional accessory.
This is useful, for example, when the inverter is permanently installed in a location that is less easily accessible during normal use.
Key benefits
- Pure sine wave inverter that converts 12V DC to 230V AC
- 700 watts continuous output power with up to 1400 watts peak power
- Protection against under- and overvoltage, overtemperature, overload, and short circuit
- Low standby consumption of less than 0.7 A and selectable 50/60 Hz frequency
- Remote input present and compatible with the optional Samlex RC15 remote control
Optionally available
- Samlex RC15 remote control
Pure sine wave inverter for camper, boat, and vehicle
With this Samlex pure sine wave inverter, you can create a 230V power supply from a suitable 12V battery system. This makes it practical for mobile situations where no normal mains connection is available.
Use it, for example, in a camper, boat, or commercial vehicle, or as part of another autonomous 12V installation. With 700 watts of continuous power, you have the capacity for various suitable 230V devices, while the peak power of 1400 watts provides room for short-term higher power demands within the inverter's specifications.
The combination of a pure sine wave, extensive safety features, low standby consumption, and the option for remote control makes this Samlex suitable for both mobile and fixed 12V installations.
Order the Samlex inverter from Deltron and provide suitable 230V equipment with a pure sine wave voltage from your 12V battery system.
