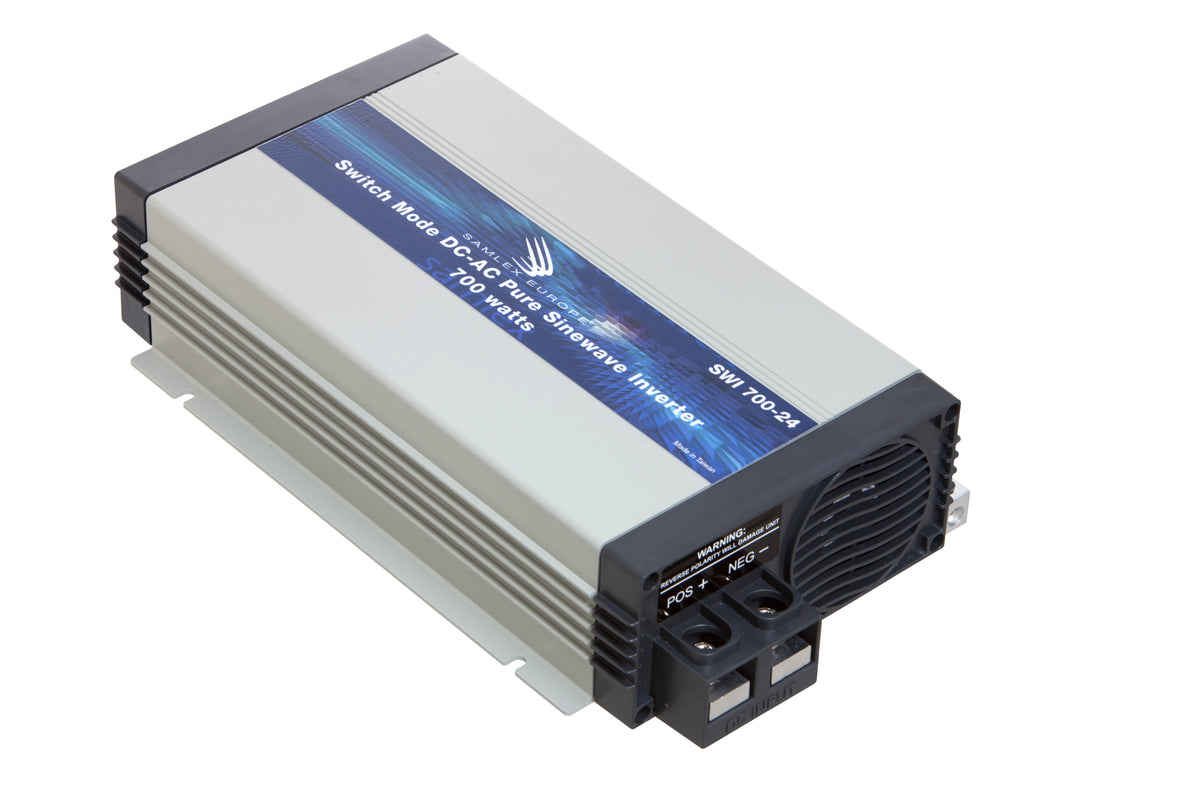

Samlex pure sine wave inverter 24V to 230V 700W
Delivery time:
Delivery time:
1-3 Business Days
Samlex pure sine wave inverter 24V to 230V 700W is backordered and will ship as soon as it is back in stock.
Do you want to use regular 230V equipment from a 24V battery system? This Samlex SWI-700-24 inverter converts 24V DC voltage into 230V AC voltage with a pure sine wave. With a continuous output power of 700 watts and a peak power of 1400 watts, this inverter is suitable for a wide range of applications in places where no normal 230V mains connection is available.
The pure sine wave inverter provides an output voltage of 230V AC ±3% and features a European VDE socket on the front. In addition, the Samlex offers extensive protection against, among other things, overload, short circuit, excessive temperature, and input voltage that is too low or too high.
A practical solution for, for example, a camper, boat, commercial vehicle, or mobile power supply with a 24V battery system.
What does a Samlex 24V to 230V inverter do?
An inverter makes it possible to use equipment designed for 230V AC from a DC power source.
This Samlex converts an input voltage of 21.4 to 33V DC into 230V AC. This allows you to power devices from a suitable 24V battery system that would normally be plugged into a regular wall outlet.
This is especially practical in locations where a 24V battery bank is available, but there is no direct connection to the power grid.
What is the advantage of a pure sine wave inverter?
Not every inverter produces the same form of AC voltage. This Samlex delivers a pure sine wave.
This makes the output voltage suitable for a broad group of 230V devices within the power limits of the inverter. A pure sine wave approximates the waveform known from the regular electricity grid and is therefore an important feature when you want to power different types of equipment from a battery system.
You have a continuous power of 700 watts available. For short-term power peaks, a maximum peak power of 1400 watts is specified.
When choosing an inverter, it is important not only to look at the normal consumption of the connected device but also to take into account any potential inrush current.
Where can you use this 24V Samlex inverter?
This inverter is intended for installations where a suitable 24V DC power supply is available and 230V AC is required.
Think, for example, of:
- In a camper, truck, or commercial vehicle with a suitable 24V battery system
- On board a boat with a 24V electrical installation
- For mobile workplaces and service vehicles without a fixed 230V connection
- In autonomous power installations where 230V is required from a battery bank
- For suitable 230V equipment with a power demand within the capacity of the inverter
What protections does this Samlex inverter have?
An inverter forms an important component between the battery and connected 230V equipment. Therefore, this Samlex has various built-in protection features.
The inverter offers protection against low input voltage, high input voltage, overheating, overload, and short circuit. In the event of a low battery voltage, the inverter can also provide a warning and eventually shut down.
LED indicators provide information about operation and protection status. This makes it easier to check the status of the inverter during use.
Efficient use of available battery capacity
When an inverter is used in a camper, boat, or mobile installation, all available energy ultimately comes from the battery. Low self-consumption is therefore important.
For this Samlex, a no-load current of less than 0.7 amps is specified. In addition, the inverter uses an efficient switch-mode construction.
The output frequency is adjustable to 50 or 60 Hz, allowing the inverter to be adapted to the requirements of the connected installation.
Easily connect 230V equipment
On the front, there is one standard European VDE 230V socket. This allows suitable equipment to be connected directly to the inverter.
For fixed or hard-to-reach installations, the device also has a remote port. The Samlex RC15 remote control is available as an optional accessory.
This can be useful, for example, when the inverter is mounted in a location that is not easily accessible during normal use due to the installation.
Key benefits
- Pure sine wave inverter that converts 24V DC to 230V AC
- 700 watts continuous output power and maximum 1400 watts peak power
- Protected against under- and overvoltage, overload, overheating, and short circuit
- Low no-load consumption of less than 0.7 A and adjustable frequency of 50/60 Hz
- Remote port present and optional Samlex RC15 remote control available
Optionally available
- Samlex RC15 remote control
Reliable 230V power from a 24V battery system
Whether you are on the road with a commercial vehicle, staying in a camper for an extended period, or have a 24V installation on board: a good inverter makes it possible to use 230V equipment even without a grid connection.
This Samlex pure sine wave inverter combines a continuous power of 700 watts with a peak power of 1400 watts and various built-in protection features. The pure sine wave output makes it suitable for a wide variety of applications, as long as the connected power remains within the inverter's specifications.
With its compact housing, low no-load current, and remote control capability, it is also practical for fixed mobile installations.
Order the Samlex inverter from Deltron and provide suitable 230V equipment with a pure sine wave voltage from your 24V battery system.
