Ecoflex-15 Plus Heatex / 25 meters
Delivery time:
Delivery time:
1-3 Business Days
Ecoflex-15 Plus Heatex / 25 meters - 25 meters is backordered and will ship as soon as it is back in stock.
About this product
About this product
Ecoflex-15 Plus Heatex coaxial cable a fire-safe choice
The Ecoflex-15 Plus HeaTex coaxial cable meets all relevant fire safety requirements, such as fire safety class EN 50265-2-1 IEC 60332-1 DIN 5510-2. This cable is ideally suited for a wide range of applications, including public buildings, railway sector, underground car parks, prisons, healthcare facilities, data centres, amusement parks, theatres, cinemas, shipbuilding and explosive hazardous areas.
Why choose Ecoflex-15 Plus Heatex?
Ecoflex-15 Plus HeaTex is halogen-free, flame-retardant and ensures very low smoke development in the event of fire. This means that escape routes and emergency exits remain more visible, which is crucial for the safety of people in emergency situations. The halogen-free sheathing does not contain any reactive elements such as fluorine, chlorine and bromine, which means that no corrosive gases are released that can cause serious material damage.
Ecoflex-15 Plus Heatex complies with the following safety standards
- Fire behaviour: EN 50265-2-1 IEC 60332-1 DIN 5510-2
- Cable bundle test: IEC 60332-3-24
- Smoke density: IEC 61034-1+2 EN 50268
- Corrosivity of flue gases: HD 602-1 EN 50267-2-3 IEC 60754-2
Properties Ecoflex 15 Heatex
- Sheath material according to DIN EN 50290-2-27 (HD 624.7)
- Flame retardant according to IEC 60332-1-2
- Manufactured according to DIN EN 45545-2, Table 5 R15 HL2
- RoHS compliant (Directive 2011/65/EU & 2015/863/EU RoHS 3)
- Low Smoke, Fire Retardant, Zero Halogen (LSZH)
- Corrosivity of flue gases according to IEC 60754-2
- Smoke density according to IEC 61034
- UV resistant
Benefits of fire-safe coaxial cable
The special HeaTex sheathing ensures that the cable is difficult to ignite in the event of fire and produces almost no smoke. This increases visibility and safety for both employees and citizens during evacuations. In addition, the HeaTex sheathing is UV-stable and wear-resistant, making the cable suitable for long-term outdoor use.
Disadvantages of the Standard PVC-jacketed coaxial cables
The standard coaxial cables with PVC sheathing are not halogen-free and are therefore unsuitable for explosion-hazardous environments. In the event of fire, PVC sheathing can promote the spread of flames, which entails additional risks. This problem is completely eliminated with the Ecoflex-15 Plus HeaTex cables.

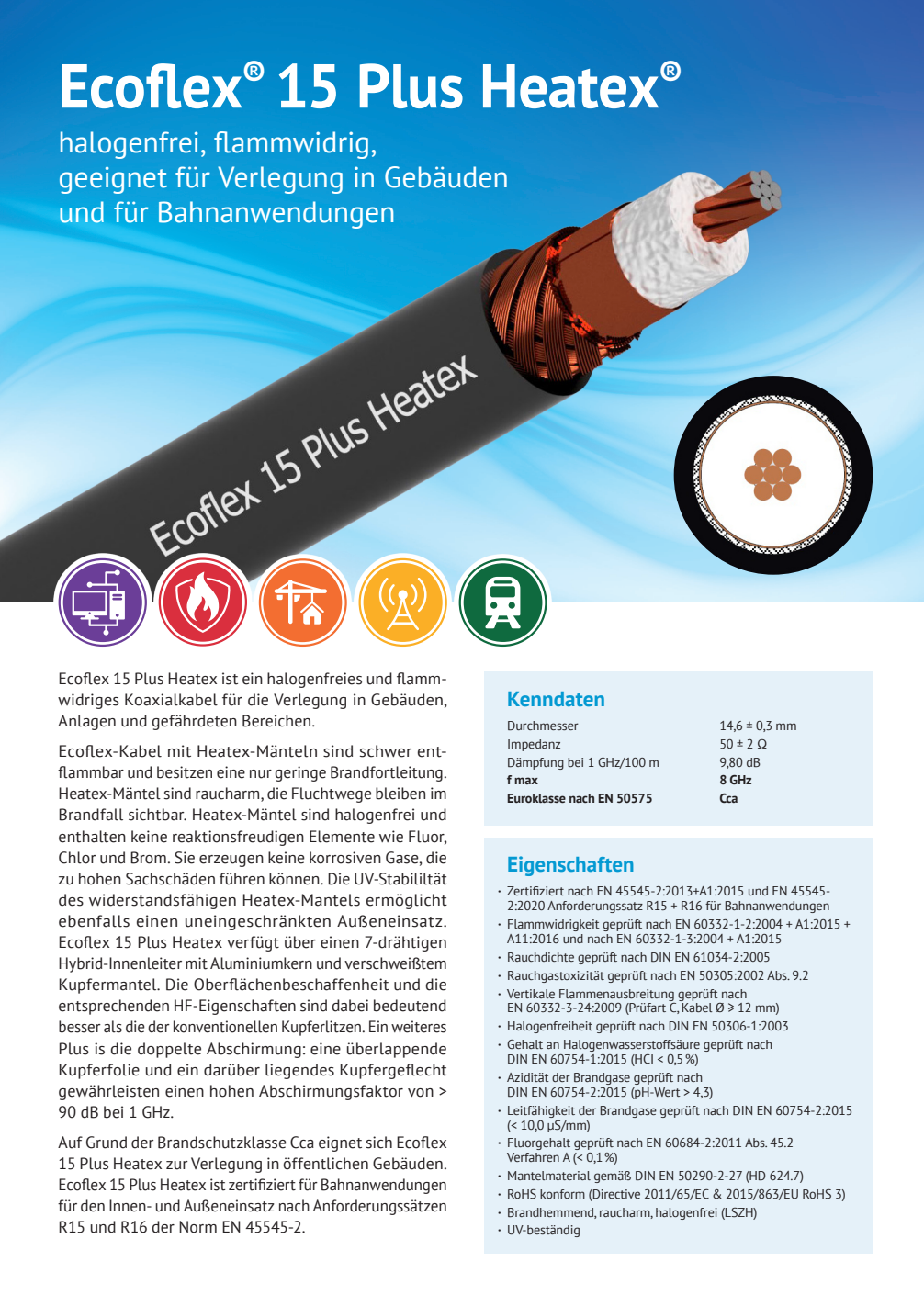

Technical structure of Ecoflex-15 Plus Heatex
The Ecoflex-15 Plus HeaTex has a 7-wire hybrid inner conductor with an aluminum core and a welded copper sheath. This construction offers significantly better surface quality and HF properties than conventional copper wires. In addition, the double shielding, consisting of an overlapping copper foil and a copper braid, ensures a shielding factor of more than 90 dB at 1 GHz.
The Ecoflex-15 Plus HeaTex coaxial cable provides a fire-safe, halogen-free solution that meets stringent safety requirements and is ideal for a variety of professional applications. For more information and to order this high-quality cable, visit Deltron today.
