SSB UHF-Male crimp Aircell-7

SKU: 70-7400  |  Barcode: 7446022923997
€ 4,25
Tax included

About this product

This UHF-Male crimp connector, with a gold-plated pin and nickel-plated housing, offers reliable performance with an impedance of 50Ω and a frequency range up to 200 MHz. Thanks to the PTFE insulation and silicone/rubber seal, it is durable and suitable for temperatures from -30 °C to +100 °C.

Delivery time:

1-3 Business Days

This UHF-Male (PL-259) crimp connector from SSB is ideal for Aircell 7 coaxial cables. Both the inner and outer conductors are attached with crimping pliers for a firm connection. The connector, with a gold-plated pin and nickel-plated housing, offers reliable performance with an impedance of 50Ω and a frequency range of up to 200 MHz. Thanks to the PTFE insulation and silicone rubber seal, it is durable and suitable for temperatures from -30 °C to +100 °C. RoHS compliant and with a protection class according to IEC 60529, this connector is perfect for various applications.

Features UHF-Male (PL-259) crimp

  • Coaxial connector UHF Male
  • Suitable for: Aircell 7
  • Center conductor inner conductor to crimp/shrink
  • Outer conductor: outer conductor for shrinking / for shrinking
  • Torque: 4-6 Nm
  • Pin CuZn39Pb3 / gold plated
  • Housing and other metal parts CuZn39Pb3 Ni plated
  • Insulation: TEFLON® (PTFE)
  • Silicone rubber seal
  • Impedance 50Ω
  • Frequency range up to 200 MHz
  • Contact resistance: ≤ 0.05 dB
  • Operating voltage ≤ 750 V RMS
  • Insulation resistance ≥ 5GΩ
  • RoHS compliant 2002/95/EC
  • Protection class IP (IEC 60529)
  • Operating temperature -30°C / +100°C
  • Wave resistance: 50Ω
  • Frequency range: up to 200 MHz
  • Return loss:
    • <-12dB @ 3GHz
    • <-25dB @ 1GHz
    • <-30dB@500MHz
  • Volume resistance: ≤ 0.05 dB
  • Working Voltage: ≤750V RMS
  • Insulation resistance: ≥ 5GΩ

Edit

  • Inner conductor: to crimp
  • Outer conductor: to crimp

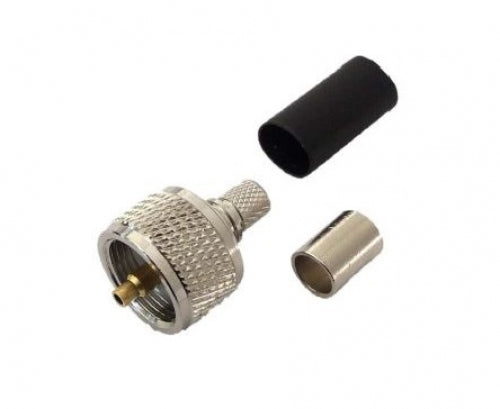

    SSB UHF-Male crimp connector
