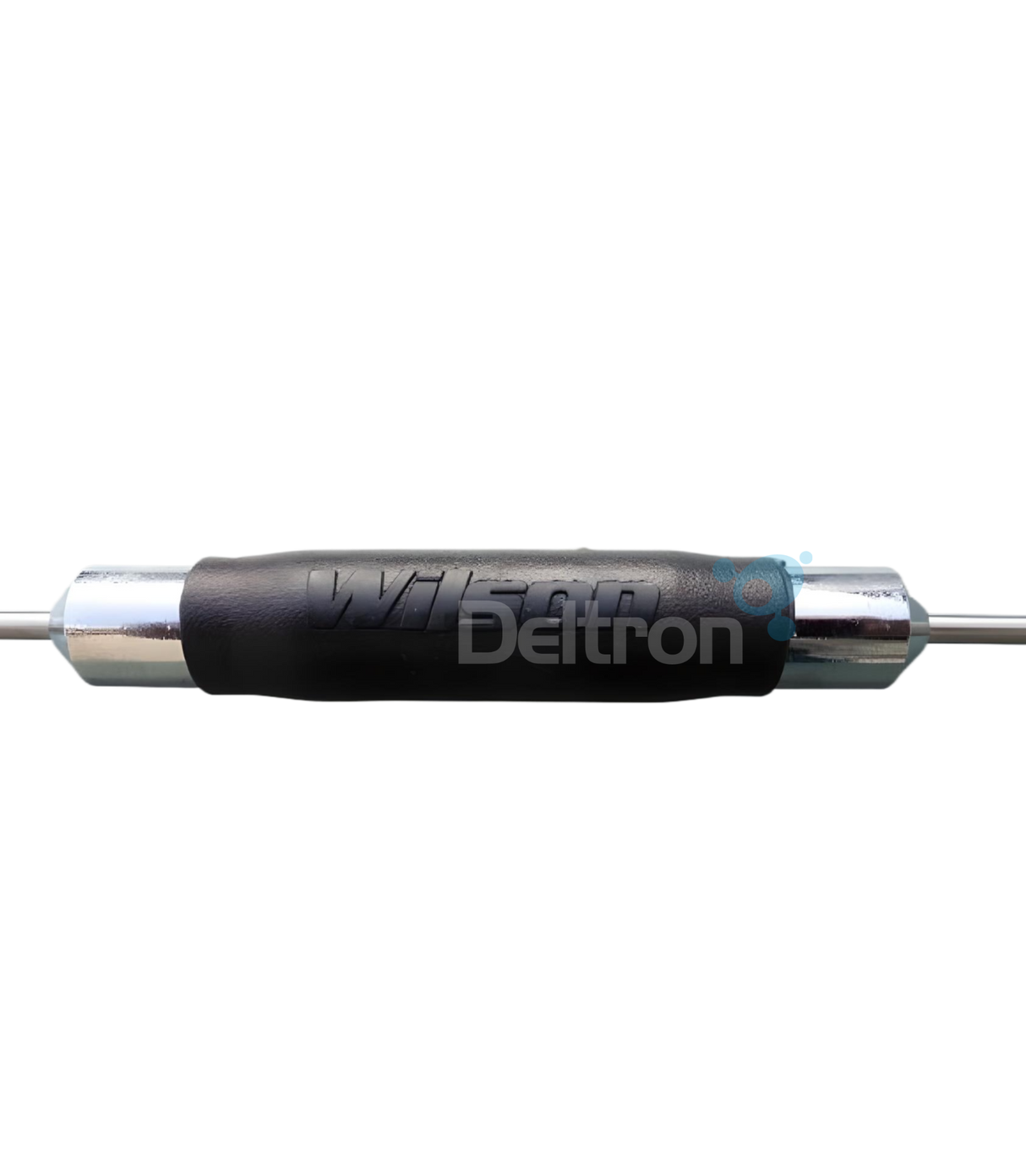

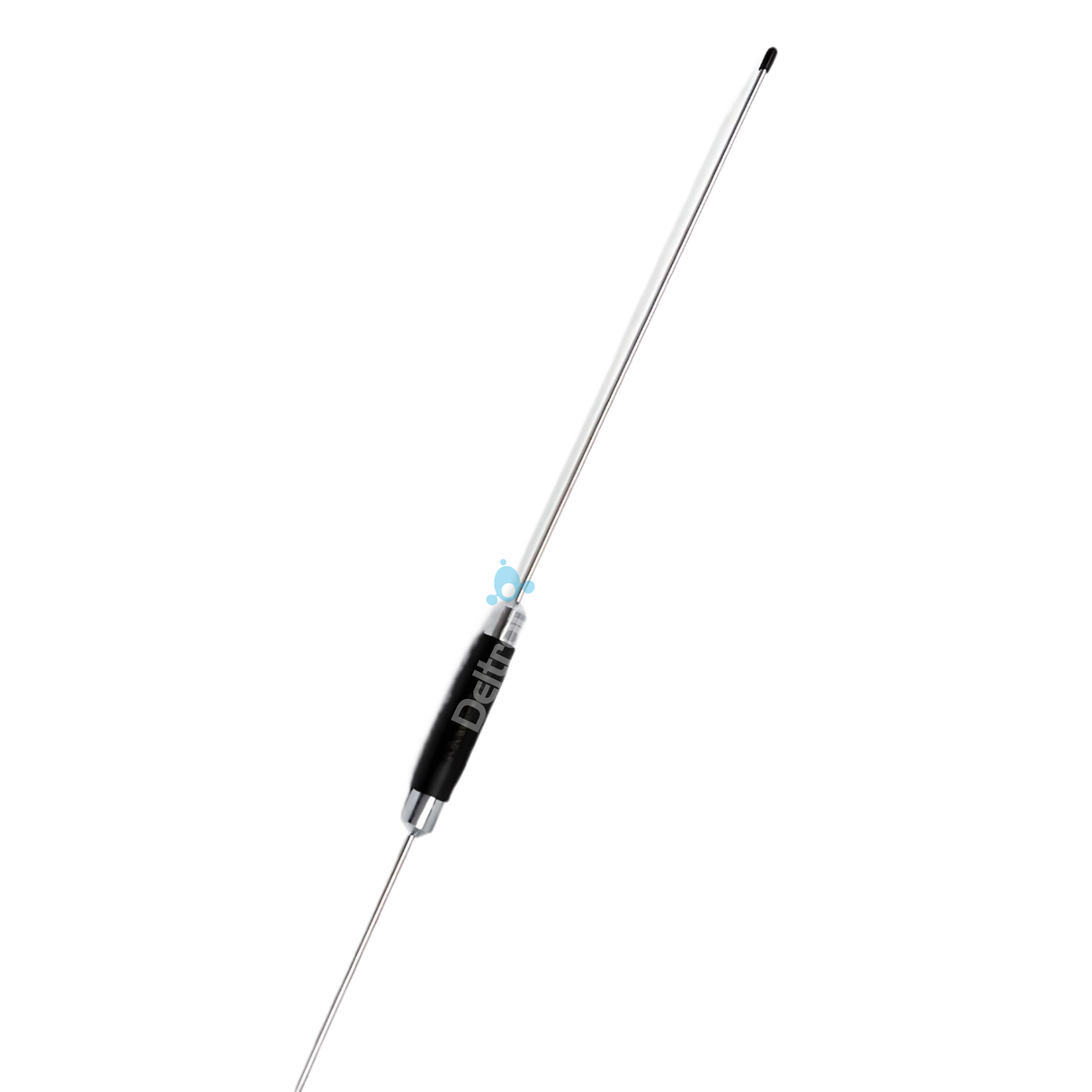

Wilson Short Load
Delivery time:
Delivery time:
1-3 Business Days
Wilson Short Load is backordered and will ship as soon as it is back in stock.
Struggling with low garages, overpasses, or parking lots where your antenna is just a tad too high? The Wilson short load antenna is the ideal solution for those with height restrictions but don't want to compromise on performance. This short antenna is designed for top performance, even in limited space.
At just 102cm long, it effortlessly replaces the longer boom of your Wilson 1000, 5000, 500, or Trucker 2000/5000 . And all without sacrificing range or power: up to 500 watts and a bandwidth of 1.2MHz.
Why choose the Wilson short load?
This compact powerhouse is specifically designed for frequent users facing physical limitations such as low headroom. It's also perfect for those who simply want a more compact design without signal loss.
The advantages of the Wilson short load antenna:
- Compact 102cm design – ideal for height problems
- Suitable for Wilson 500, 1000, 5000, Trucker 2000 and 5000
- Easy to install and tune (SWR)
- Robust performance with up to 500 watts of power
- Replaces the standard 62" or 49" antenna mount
Quick and easy to install
This antenna radiator can be installed in just a few steps. Simply remove the existing antenna, attach the short load, and adjust it with an SWR test if necessary. Note: Only the top antenna may be shortened.
Note: The top antenna is intentionally longer than necessary for channels 1-40. Shorten the top antenna gradually, checking the SER between each shortening, until you achieve the lowest possible SWR. The bottom antenna should never be shortened.
Easy to adjust and install
- Loosen the set screws in the chrome tube of the antenna and remove the existing antenna boom.
- Remove the vinyl cap from the bottom section (this section is 28cm long) of the short load.
- Place this bottom section in the mast.
- Perform an SWR test to determine the value.
- If adjustment is necessary, remove the vinyl cap from the top section (this section is 66cm long) of the short load.
- Trim the top strand a small piece at a time until you achieve the lowest possible SWR, using special scissors, pliers, or a hacksaw.
- When finished, replace the top vinyl cap.
NB:
- Never cut the bottom portion of the antenna boom – adjustment is always done at the top.
- The top boom has been deliberately made longer than necessary for use on channel 1-40, and must be trimmed to length.

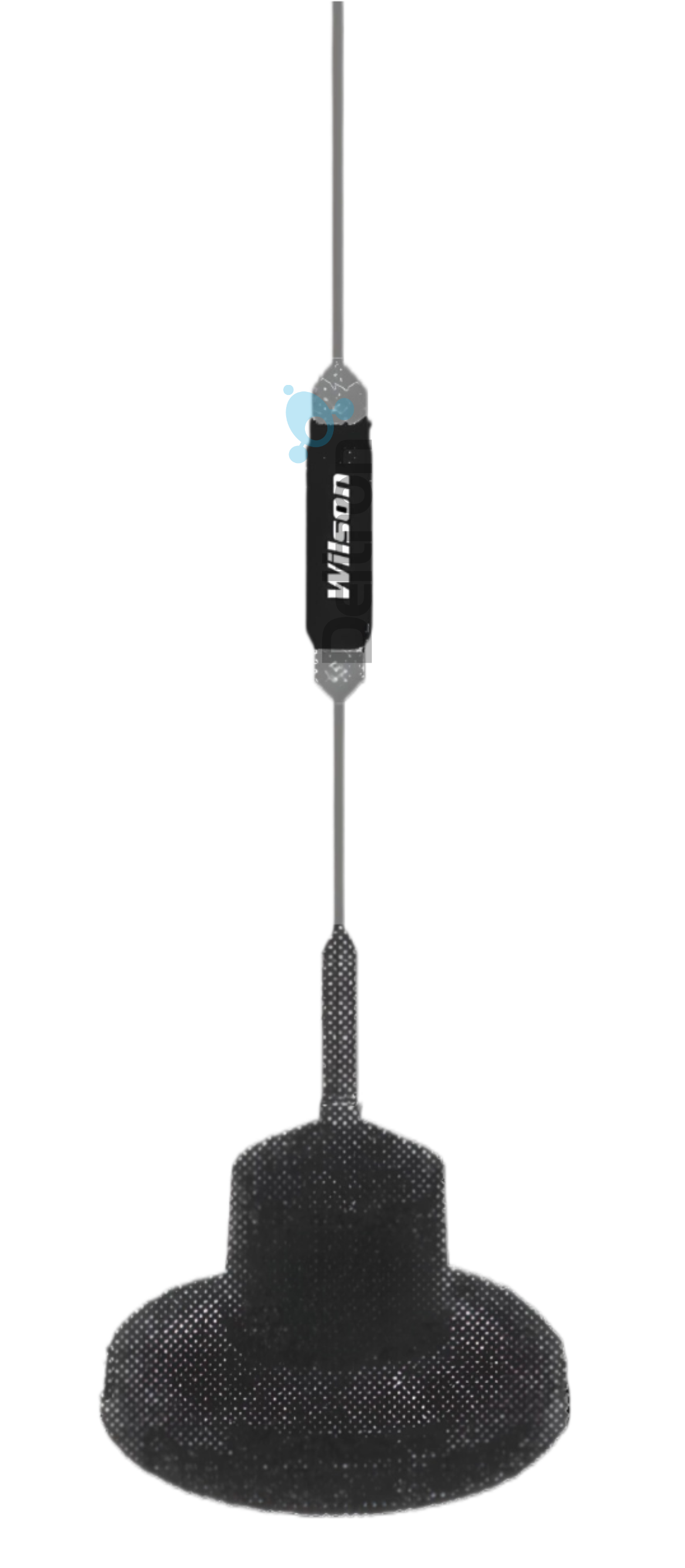

- The Short Load is supplied without a magnetic base.
