Whether you're an installer, work in the maritime sector, or are responsible for cabling in public buildings, reliable coaxial cables are crucial. At Deltron.nl, you'll find a wide range of certified coaxial cables from SSB Electronic that meet the strictest requirements for safety, performance, and durability. In this blog post, we explain what makes these cables so special, what to look for, and which solution is best suited to your application.
Why choose certified coaxial cables?
Certified coaxial cables are mandatory in many environments, such as town halls, libraries, and event halls. This is due to their flame-retardant and halogen-free properties, which are crucial in the event of an emergency: the cables slow down fires and do not produce toxic gases or smoke.
These cables are also indispensable in public transport, wind turbines, offshore, and shipping. Here, they are exposed to extreme conditions such as vibration, UV radiation, saltwater, and temperature fluctuations. SSB Electronic cables are specially designed to maintain optimal performance in these situations.
What does the CPR regulation say?
Since July 1, 2017, it has been mandatory to classify cables according to the European Construction Products Regulation (CPR) EN 50575. This standard divides cables into fire classes (such as Cca, Dca, and Fca) based on flame spread, smoke development, and corrosiveness. All SSB Electronic cables are CE marked and include a Declaration of Performance (DoP), which can be found at Deltron.nl under the product photos under the "Manual" tab.
Fire classes and specifications
- s1a/b, s2, s3: smoke development (low to unspecified)
- d0, d1, d2: burning drops
- a1, a2, a3: corrosiveness of flue gases
These classifications help you choose the right cable for your application. For example: Cca-s1a,d0,a1 means very low smoke development, no flaming droplets, and hardly any corrosive smoke.
Application areas of SSB coaxial cables
SSB Electronic has coaxial cables for various sectors:
- Public buildings: FRNC and Heatex cables with Cca classification
- Public transport (bus/train): cables with ECE-R 118 and EN 45545-2 certification
- Shipping and Offshore: SeaTex series with DNV certification
- Wind turbines: SeaTex series, especially for harsh conditions
- Mobile communications: intermodulation-resistant cables with low attenuation
- Audio/video and IT: extremely flexible cables with low losses

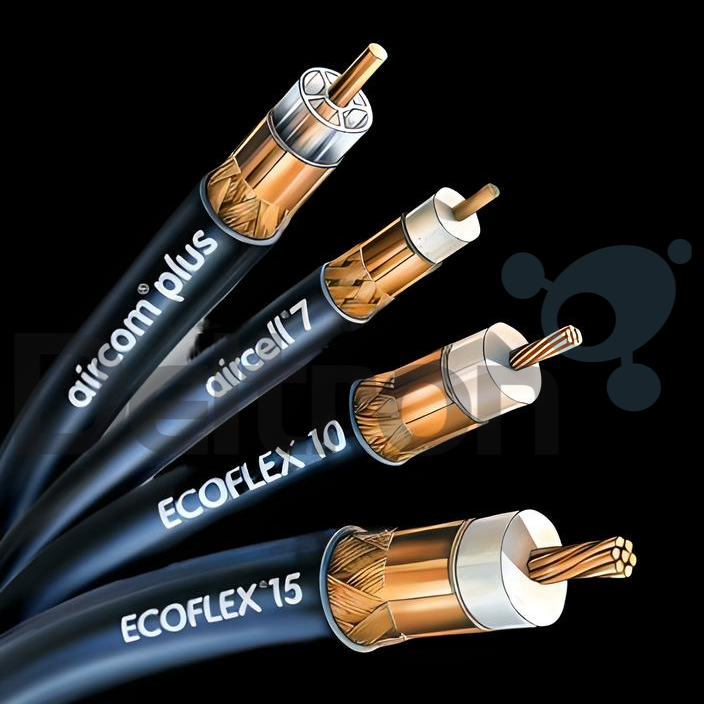

Popular coaxial cable types highlighted
- Aircell 5 / 7 / Heatex: thin and flexible, ideal for WLAN and RF applications
- Ecoflex 5 / 7 / 10 / 15 and Plus / FRNC / Heatex: excellent performance up to 6 or 8 GHz, robust and UV-resistant
- Aircom Premium / FRNC / 15: ultra-low loss cables for digital communications
- SeaTex 5 / 7 / 10 / 15: specially developed for maritime and offshore applications
- H155 SSB/PE: compact, flexible cables for GPS, CB, WLAN
Coaxial cables in different diameters
5 MM
7 MM
10 MM
- Aircom Premium
- Aircom Premium FRNC
- Ecoflex 10
- Ecoflex 10 FRNC
- Ecoflex 10 Plus
- Ecoflex 10 Plus Heatex
- Seatex 10
15 MM
Other
- Ecoflex Multicore
Assembly and maintenance tips
SSB coaxial cables are designed for durability, but correct installation is essential:
- Avoid sharp bends, pulls or kinks
- Protect from high temperatures (>85°C) and chemical liquids
- Fasten vertically mounted cables regularly to avoid tension
Sustainability and environmentally conscious production
At SSB Electronic, sustainability is a top priority. Product development is carried out with respect for people and the environment. This means, among other things:
- Long lifespan of products
- No use of hazardous substances such as lead, asbestos or fluorinated hydrocarbons
- Minimal impact on the environment during production and use
All products meet European environmental requirements
- RoHS (2011/65/EU): Restriction of Hazardous Substances in Electronic Equipment
- WEEE (2012/19/EU): responsible treatment of electronic waste
- REACH (1907/2006/EC): Registration and restriction of chemical substances
These principles form an integral part of SSB Electronic's daily business operations.
Matching connectors and adapters
At Deltron.nl, you'll find not only certified connectors and adapters (converters) that perfectly match SSB coaxial cables, but also special crimping pliers with interchangeable inserts. These allow you to easily and professionally attach the correct connectors to the coaxial cables. Whether you're working with Ecoflex, Aircom, or Aircell connectors, with the right tools from Deltron.nl, you'll always create a reliable connection. Also check out our blog "SSB Connectors and Adapters" for more information about connectors and adapters.
Reliability and performance with SSB coaxial cables
Whether you're looking for a cable for a library, wind turbine, or ship, at Deltron.nl you choose safety, quality, and reliability. With SSB Electronic's wide selection, there's always a cable that meets your needs. Contact us for advice or browse the range directly at Deltron.nl.
