Alinco DX-10 Allmode transceiver

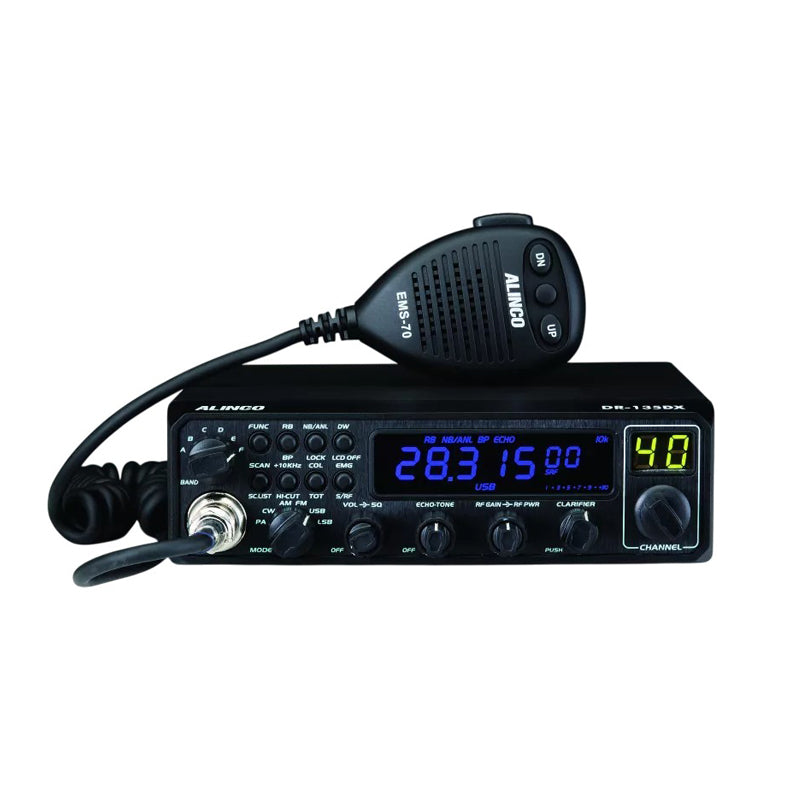

The Alinco DX-10 is a versatile and powerful all-mode transceiver specifically designed for amateur radio operators and DX enthusiasts who want to get the most out of the 10 and 11 meter bands. This modern successor to the legendary Alinco DR-135DX combines proven reliability with modern functionality and excellent performance. Whether you're operating from home in your shack or on the go mobile, the DX-10 offers everything you need for clear, stable, and long-distance connections.

Thanks to support for AM, FM, USB, LSB, and CW, this Alinco transceiver is suitable for a wide range of applications. From local communication to challenging long-distance DX connections: the DX-10 delivers excellent reception quality, a high signal-to-noise ratio, and user-friendly operation that appeals to both beginners and experienced users.

Why choose the Alinco DX-10?

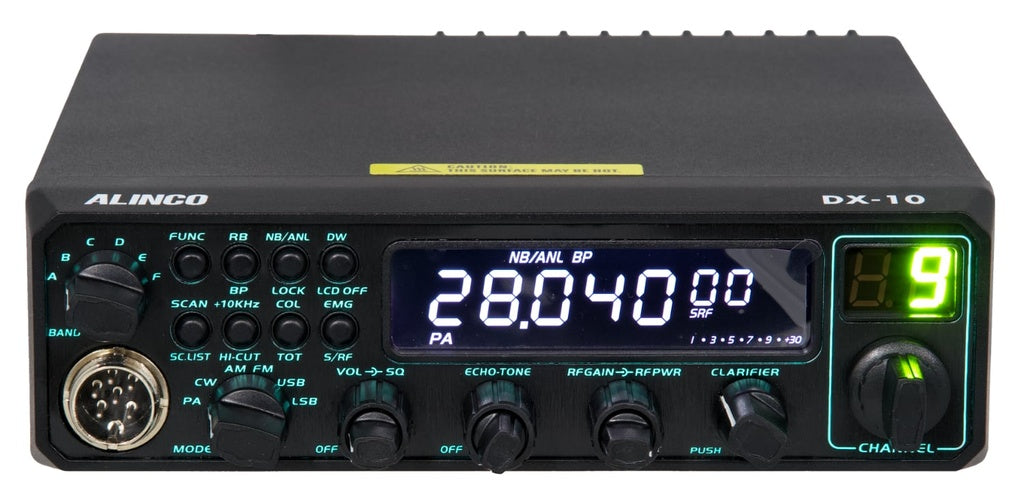

The Alinco DX-10 stands out for its combination of performance, flexibility, and ease of use. The large backlit LCD display provides a clear view of frequencies, memory channels, and signal strength. With a choice of multiple display colors, you can easily adjust the lighting to your preference.

The built-in Noise Blanker (NB) and Automatic Noise Limiter (ANL) help reduce interference and unwanted noise, making signals clearer. In addition, this all-mode transceiver features a built-in SWR meter, RF gain control, clarifier, and various scan functions for optimal user convenience.

For users who want to fully personalize their radio, the DX-10 is PC programmable with the optional Alinco ERW10A programming cable. This allows frequencies, memory channels, and settings to be easily adjusted.

Suitable for serious DX connections

When propagation is favorable, the Alinco DX-10 offers excellent opportunities for long-distance connections on the 10 and 11 meter bands. Thanks to stable frequency control of ±1 ppm and a sensitive receiver, weak signals are accurately received and processed. In combination with a quality base or mobile antenna, you get the most out of this powerful Alinco all-mode transceiver.

Key features

• Support for AM, FM, USB, LSB, and CW

• Frequency range 28.000 – 29.700 MHz (expandable via software)

• Up to 360 programmable memory channels

• Output power up to 25 Watt in USB/LSB

• Large multi-color LCD display with 7 color settings

• Built-in SWR meter, RF gain, and clarifier

• Noise Blanker (NB) and Automatic Noise Limiter (ANL)

• Dual Watch and scan functions

• PC programmable with optional ERW10A cable

Important specifications

The Alinco DX-10 operates on a power supply voltage of 13.8 V DC and delivers an adjustable transmit power of 1 to 12 Watt in AM, FM, and CW, and up to 25 Watt in USB and LSB. The receiver uses a double superheterodyne design for excellent selectivity and sensitivity.

With dimensions of approximately 170 x 52 x 215 mm and a weight of about 1.4 kg, the transceiver is compact enough for mobile installation, while offering all the functionality demanding users expect.

Package contents

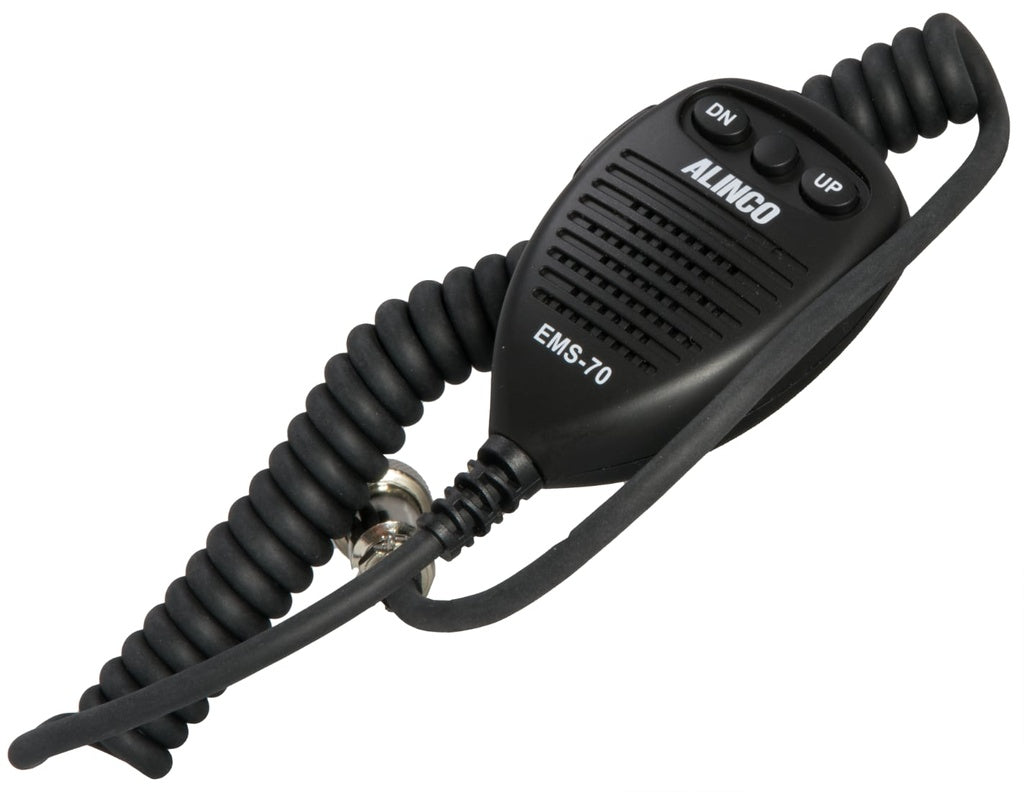

The Alinco DX-10 comes complete with a hand microphone, power cable, mounting bracket, mounting hardware, and an English manual. This means you can get started right away with your new transceiver.

Choose proven Alinco quality

Alinco is globally renowned for its reliable communication equipment for amateur radio operators. The DX-10 builds on that reputation and offers an excellent combination of performance, functionality, and ease of use. Are you looking for a powerful Alinco transceiver for the 10 and 11 meter bands with support for all major modulations? Then the Alinco DX-10 is an excellent choice.

Order your Alinco DX-10 all-mode transceiver today at Deltron.nl and discover for yourself why this transceiver is so popular among DXers and amateur radio operators worldwide.

Available accessories

• Programming cable Alinco ERW10A
