CGA SB2000MK2 interface cable Yaesu FT-450/FT-950
Delivery time:
Delivery time:
1-3 Business Days
CGA SB2000MK2 interface cable Yaesu FT-450/FT-950 is backordered and will ship as soon as it is back in stock.

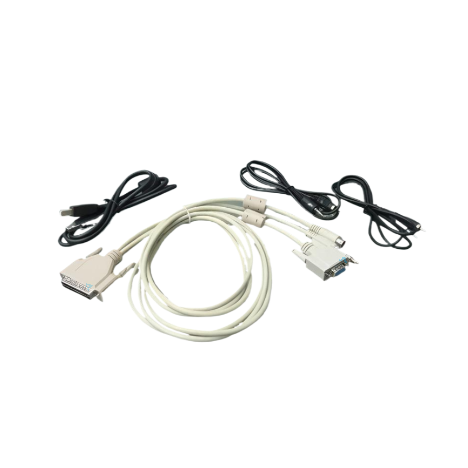

Do you want to connect your Yaesu transceiver to the CGA SB2000MK2 interface? The CGA ACC-104 interface cable is designed for compatible Yaesu transceivers with a 6-pin Mini-DIN data connection and DB9 CAT connection. It creates the necessary connection between the SB2000MK2 and your transceiver for data communication and CAT control, among other things.
The ACC-104 is suitable for various popular Yaesu models, including the FT-450, FT-950, FTDX-3000, and FT-991.
The right Yaesu cable for the CGA SB2000MK2
For a good connection between your transceiver and the CGA SB2000MK2, you need an interface cable that matches your radio's connections and communication. The CGA ACC-104 combines a 6-pin Mini-DIN data cable with a DB9 COM cable for CAT control via the RS232 protocol.
In addition, the cable set has a 1/4 inch connector for CW. This means that with one cable set, you have the necessary connections for linking various compatible Yaesu transceivers to the SB2000MK2.
Which Yaesu transceivers is the ACC-104 suitable for?
The CGA ACC-104 can be used for various Yaesu transceivers. Based on the available product information, these include the Yaesu FT-450, FT-950, FTDX-3000, and FT-991.
Key features:
- Interface cable for the CGA SB2000MK2
- For compatible Yaesu transceivers
- 6-pin Mini-DIN data cable
- DB9 COM CAT cable with RS232 protocol
- 1/4 inch connector for CW
Note when using with the Yaesu FT-847
The Yaesu FT-847 differs from the other mentioned Yaesu transceivers in terms of CAT connection. As a result, the CAT function with the ACC-104 does not work directly in the standard configuration.

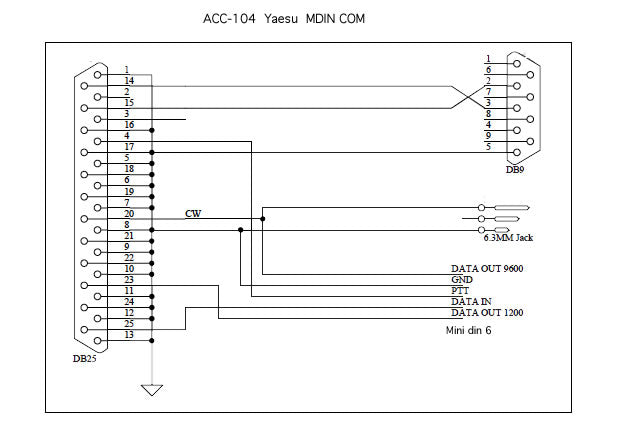

For use with the FT-847, pins 2 and 3 of the DB9 connection must be crossed. This can be done, for example, with a suitable DB9 adapter where these two pins are reversed. The other mentioned Yaesu models use a straight DB9 connection according to the available information.
Do you want to use the ACC-104 for an FT-847? Then keep in mind that modifying the DB9 connection is necessary for CAT communication. Always check the correct pin assignment of your equipment before connecting.
Practical cable set for your Yaesu interface
With the CGA ACC-104, you don't have to search for various separate data and CAT cables for a compatible Yaesu transceiver. The cable set is specifically designed to enable the connection with the CGA SB2000MK2 and provides connections for data, CAT, and CW.
Order the CGA ACC-104 interface cable and connect your compatible Yaesu transceiver to the CGA SB2000MK2.
