CGA SB2000MK2 interface cable Yaesu FT-1000/FT-2000/FT-9000
Delivery time:
Delivery time:
1-3 Business Days
CGA SB2000MK2 interface cable Yaesu FT-1000/FT-2000/FT-9000 is backordered and will ship as soon as it is back in stock.
The CGA ACC-101 interface cable connects a compatible Yaesu desktop transceiver to the CGA SB-2000MK2 Soundcard & CAT Interface. The cable set is specifically designed for, among others, the Yaesu FT-1000MP series, FT-2000, and FT-9000DX and provides the necessary connections for data, CAT control, and CW.
Do you use the CGA SB-2000MK2 to control your Yaesu transceiver from a computer or use digital modes? Then the ACC-101 offers the appropriate cabling to correctly connect both devices.

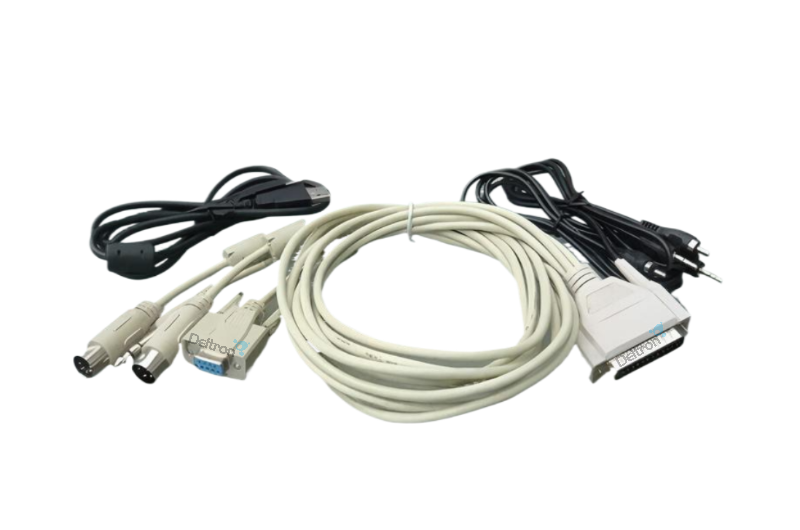

Complete cable set for the CGA SB-2000MK2

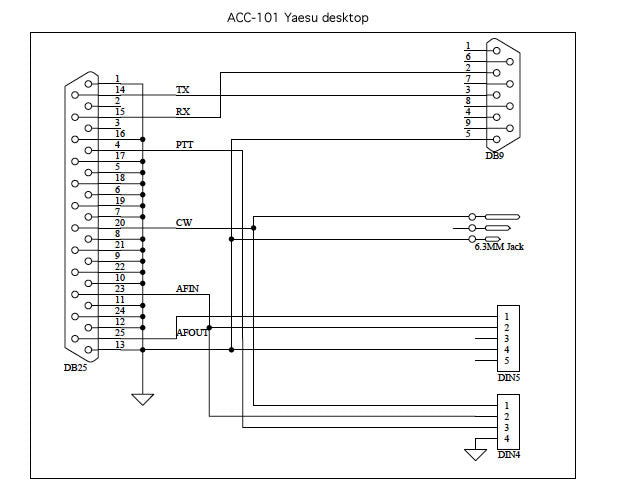

The CGA ACC-101 combines various connections in one cable set. The set features a DIN-4 connector for RTTY data, a DIN-5 connector for Packet data, a DB9 COM connector for CAT control via RS232, and a 1/4 inch connector for CW.
This makes the cable suitable for various functions supported by the SB-2000MK2. These include CAT control of the transceiver, PTT, FSK and CW-keying, and working with digital modes such as RTTY, PSK, SSTV, and FAX.
The SB-2000MK2 uses your computer's sound card. Good to know: the SB-2000MK2 itself does not contain a sound card. The interface connects to an existing sound card in the computer.
Which Yaesu transceivers is the CGA ACC-101 suitable for?
According to the available product information, the CGA ACC-101 interface cable is intended for the following Yaesu transceivers:
- Yaesu FT-1000MP, including MK-V and MK-V Field
- Yaesu FT-2000
- Yaesu FT-9000DX
Reliable connection for CAT and digital modes
The CGA SB-2000MK2 features built-in conversion from RS232 to USB. This allows transceivers with an RS232 interface to be used via the SB-2000MK2 with a modern USB connection on the computer. For CAT control, a maximum speed of 19,200 baud is supported.
The Mk2 version also offers two virtual serial ports. This allows functions to be distributed: one virtual port can be used for PTT and CW/FSK, while the other remains available for CAT control. This is practical for software that cannot process these functions via the same serial port.
The signals of the SB-2000MK2 are optically or transformer-isolated, and the interface is powered via the computer's USB connection.
*Please note: this is the cable set
The CGA ACC-101 is a separately available interface cable for the CGA SB-2000MK2. The SB-2000MK2 interface itself is not described as part of this cable set.
Always check before ordering whether your exact Yaesu model matches the stated compatibility.
Connect your Yaesu transceiver neatly to your CGA SB-2000MK2. Order the CGA ACC-101 interface cable and get the most out of your CAT control and digital modes.
We also have interface cables for the SB2000MK2 for other models:
- CGA ACC-101: Yaesu FT-1000MP(MK-V, MK-V Field), FT-2000, FT-9000(DX).
- CGA ACC-102 for Icom with 8 pin ACC connection: Icom IC-746(Pro), IC-7400, IC-756xxx (Pro, Pro2, Pro3), IC-7600, IC-7700, IC-7800 and practically all recent Icom desktop transceivers.
- CGA ACC-103 for Icom with 13 pin ACC connection: Icom IC-703, IC-706(MK2, MK2G, IC-717, IC-78) IC-718, IC-703, IC-706, IC-7000, IC-7200, IC-7100.
- CGA ACC-104: Yaesu FT-45, FT-950, Yaesu FT-450 and FT-950 and FT-DX3000D (for the Yaesu FT-847 see remark*).
- CGA ACC-105: Yaesu FT-100(D), FT-817, FT-857(D), FT-897(D).
- CGA ACC-106: For 13-Pin Kenwood TS-570, TS-2000, TS-590, TS-990 and TS-870S.
- CGA ACC-107: Kenwood TS-480SAT and TS-480HX.
