Diamond SS770R
Delivery time:
Delivery time:
1-3 Business Days
Diamond SS770R is backordered and will ship as soon as it is back in stock.
Want to maximize the efficiency of Yagi antenna stacking? The Diamond SS770R stack transformer is specifically designed for perfect antenna stacking on the 2-meter (144 MHz) and 70-cm (430 MHz) bands . This high-quality power divider allows you to easily phase two Yagi antennas and ensure optimal signal distribution.

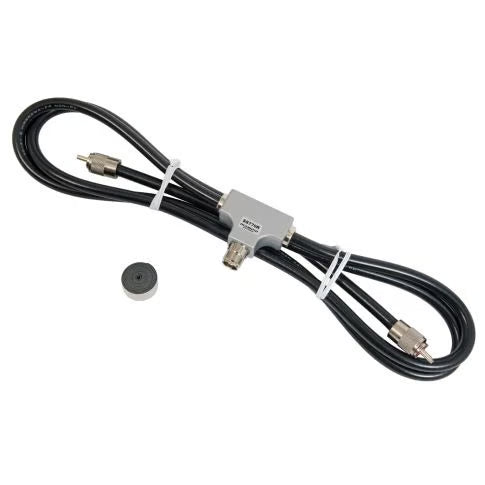

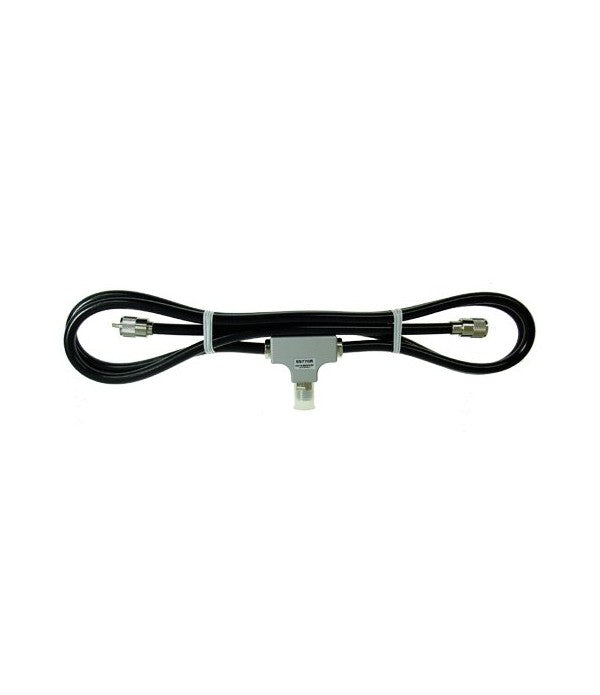

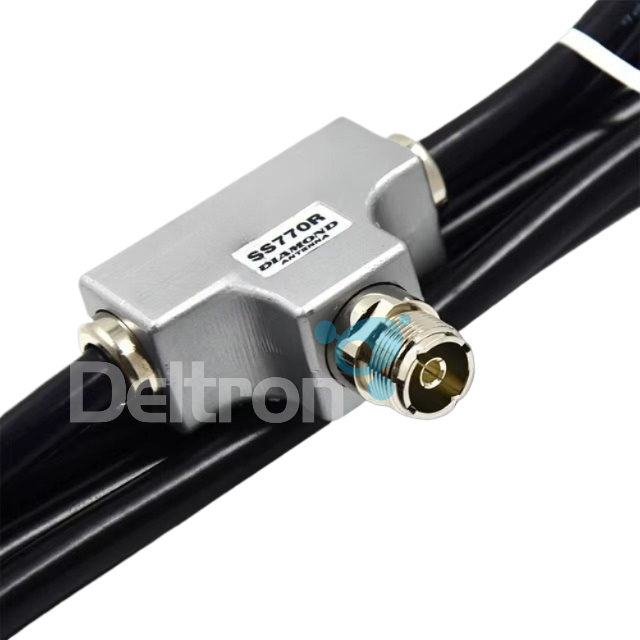

When you connect your coaxial cable to the central SO-239 (UHF female) input of the SS770R, the incoming signal is perfectly split between the two outputs . These outputs are equipped with sturdy PL-259 connectors , ready to feed your two Yagi antennas in phase. This ensures maximum gain, reduced noise, and a sharper directional pattern.
Designed for problem-free stacking of Yagi antennas

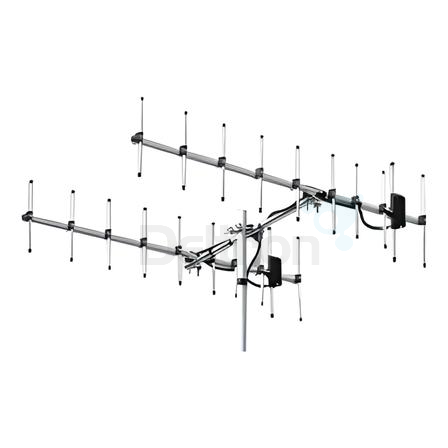

The Diamond SS770R is the ideal complement for those using stacking brackets like the Diamond SB144 or SB430 series. By combining the correct spacing and phasing cables, you can create an extremely efficient dual antenna setup that performs reliably even under challenging conditions.
Key features of the Diamond SS770R stack transformer:
- Specially developed for stacking Yagi antennas at 144 MHz (2m) and 430 MHz (70cm)
- Distributes the signal perfectly in phase to two antennas
- High-quality, weatherproof connectors for reliable connections
- Easy connection: SO-239 input, PL-259 outputs
- Optimal performance in antenna stacking configurations
- Ideal for radio amateurs and repeater installations
When do you use the Diamond SS770R?
- The Diamond SS770R can be used in combination with:
- 2 identical Yagi antennas (for example A144S10R2 , A430S10R2 or A430S15R2 )
- A suitable stacking bracket such as the SB430R2
- Your existing coaxial connection and mast construction
The SS770R ensures that both antennas work together perfectly and utilize their radiation patterns optimally. This makes it ideal for those who want maximum directional sensitivity, improved reception, and extended transmission range.
Order the Diamond SS770R from Deltron.nl today and optimize your antenna stacking setup with professional quality!
