Grazioli FE62V
Delivery time:
Delivery time:
1-3 Business Days
Grazioli FE62V is backordered and will ship as soon as it is back in stock.

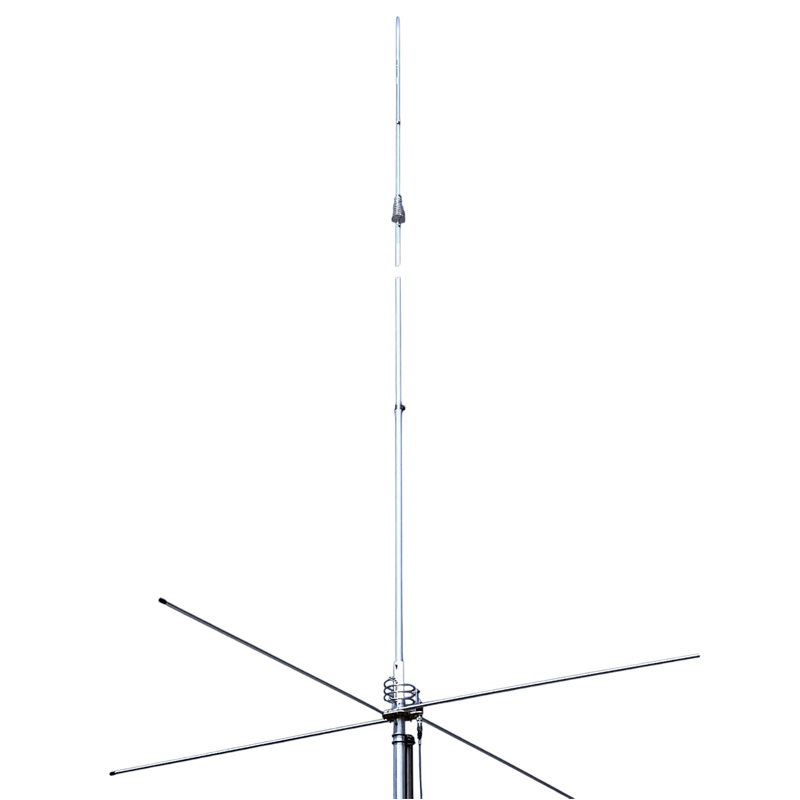

Looking for a high-quality VHF base antenna that delivers top performance on the 6-meter band? The Grazioli FE62V is a professionally built 2x5/8 λ collinear base antenna, adjustable from 50 to 54 MHz. Its robust construction and high power make this antenna the ideal choice for radio amateurs who leave nothing to chance.
The FE62V comes with a tuning table and can optionally be configured as a shorter 5/8-λ version. The sleek design is constructed of AW6063-T66 aluminum alloy and high-quality stainless steel mounting hardware , ensuring the antenna will withstand years of weather and wind. Thanks to four robust quarter-wave radials, the antenna provides a stable ground plane construction for consistent performance.
Key Benefits
- Powerful transmission range: 3.5 dBd (5.65 dBi) gain for excellent VHF performance
- High power handling capacity: up to 2000W continuous power, suitable for all transmission modes
- Corrosion resistant: aluminum alloy and stainless steel mounting for long life
- Wide tunable range: from 50 to 54 MHz with tuning tables included
- Safe installation: four quarter-wave radials ensure maximum stability
Applications
- Ideal as a VHF base antenna for the 6-meter band
- Suitable for use in severe weather conditions
- Perfect for radio amateurs who demand powerful, stable performance
- Suitable for both residential and field installations
Materials used

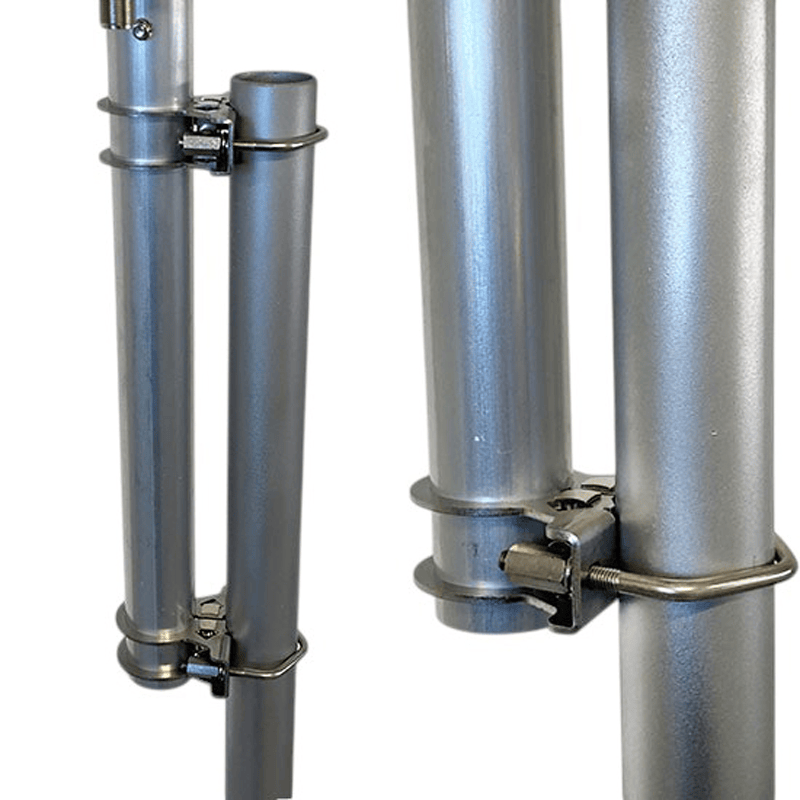

Grazioli uses the best available alloy for antenna construction for the tubes: AW6063-T66. This is an alloy of aluminum, magnesium, and silicon, hardened to T-66, making the material exceptionally strong and wear-resistant. The tubes are formed by extrusion and then cold drawn. This makes the tubes extremely precise in both outer diameter and wall thickness, ensuring a perfect fit with minimal clearance between the tube sections.
The "base" consists of four robust quarter-wave radials, each 1.4 meters long. Each radial is constructed from a single piece of tubing with a diameter of 13 mm and a wall thickness of 1.25 mm. They are securely attached to the support plate with two U-bolts and self-locking nuts. Four fiberglass reinforcements are included to strengthen the connections and prevent the tubes from denting.
Choose top quality and maximum reliability with the Grazioli FE62V – the ultimate VHF base antenna for the 6-meter band. Order today and get the most out of your transmitter.
SWR graph
