mAT 1F automatic tuner Yaesu FTX-1
Delivery time:
Delivery time:
1-3 working days
mAT 1F automatic tuner Yaesu FTX-1 is backordered and will ship as soon as it is back in stock.

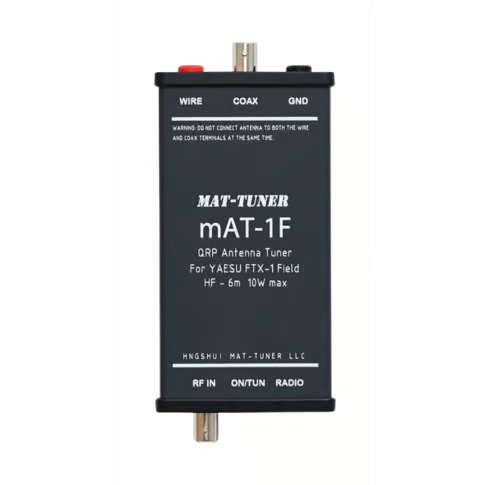

Do you want to get the most out of your Yaesu FTX-1 Field? The mAT-1F automatic tuner has been specially developed for the Yaesu FTX-1 Field and ensures fast and accurate tuning of a wide range of antennas. Thanks to full integration with the transceiver, you can easily control all tuner functions via the front panel of the Yaesu FTX-1, just like with the original tuner.
This compact and versatile automatic tuner is the ideal addition for radio amateurs working on the go, portable, or from a field setup who need reliable antenna matching.
Fully integrated with the Yaesu FTX-1
The mAT-1F is exclusively designed for the Yaesu FTX-1 Field and is not compatible with other transceivers. Thanks to direct communication between the tuner and the radio, tuning procedures are fast and problem-free.
All functions are directly accessible via the front panel of the Yaesu FTX-1, eliminating the need for additional controls. This ensures user-friendly and professional operation, both at home and in the field.
Suitable for wire and coaxial antennas

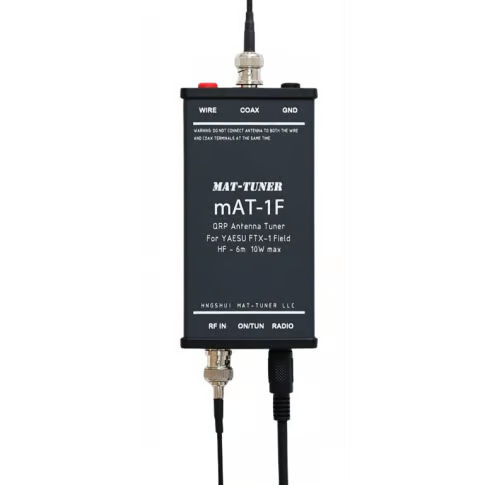

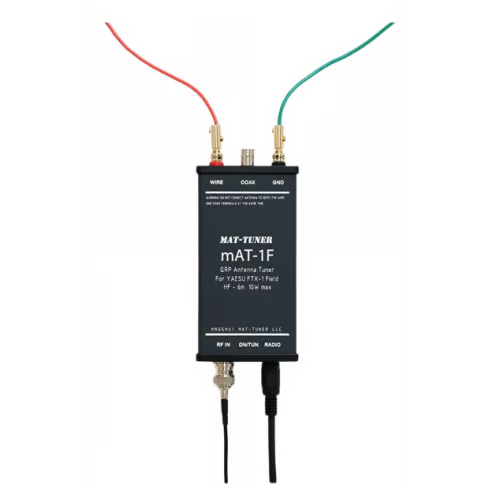

One of the biggest advantages of the mAT-1F automatic tuner is its flexible antenna connection. At the top, there are both a BNC connector and banana connectors. This allows you to easily switch between different antenna types.
Whether you use a dipole, vertical antenna, V-antenna, beam antenna, or a simple wire antenna, the mAT-1F offers the flexibility you need during portable and field operations.
Fast tuning with 16,000 memory channels
The mAT-1F has no less than 16,000 memory channels. Once tuned frequencies are stored, making future tuning significantly faster.
With a tuning time of less than 10 seconds, the tuner can quickly find the correct setting, giving you more time for connections and less time spent adjusting your antenna system.
Why choose the mAT-1F?
For users of the Yaesu FTX-1 Field who are looking for maximum flexibility and ease of use, the mAT-1F is an excellent choice. The combination of compact dimensions, extensive memory function, and support for various antenna types makes this automatic tuner particularly versatile.
Key features:
- Specially developed for the Yaesu FTX-1 Field
- Fully controllable via the transceiver's front panel
- Suitable for coax and wire antennas
- BNC connector and banana connectors present
- Frequency range from 1.8 to 54 MHz
- 16,000 memory channels for fast retuning
- Tuning time of less than 10 seconds
- Compact and lightweight design
- Includes control cable and coaxial cable
Complete delivery
The mAT-1F comes with all the necessary accessories to get started right away. In the package, you will find the automatic tuner, a 100 cm mAT-CF control cable, a 100 cm mAT-CBB1M BNC coaxial cable, and an English manual.
This gives you a complete and reliable tuner solution for your Yaesu FTX-1 Field.
Order the mAT-1F automatic tuner today and get the maximum performance from your Yaesu FTX-1 Field and antenna system.
What is the mAT-1F automatic tuner? The mAT-1F is an automatic antenna tuner specially designed for the Yaesu FTX-1 Field transceiver, ensuring optimal antenna tuning.
Is the mAT-1F compatible with other Yaesu transceivers? No, the mAT-1F is exclusively developed for the Yaesu FTX-1 Field and does not work with other transceivers.
Which antennas does the mAT-1F support? The tuner supports, among others, dipoles, vertical antennas, V-antennas, beam antennas, wire antennas, and almost all coax-fed antennas.
How is the mAT-1F connected to the Yaesu FTX-1? The tuner is connected via the HF antenna connector and the TUNER port of the Yaesu FTX-1 with the supplied coaxial and control cables.
How fast does the mAT-1F tune? A full tune typically takes less than 10 seconds.
Frequency range: 1.8 - 54.0 MHz
Suitable for: Yaesu FTX-1 Field
Antenna connectors: BNC jack and banana terminals for coax-fed or wire antennas
Control interface: Full front-panel control compatibility with original tuner
RF input: Connects to transmitter's HF antenna connector via coaxial cable
Control connection: Uses supplied mAT-CF control cable to transmitter's "TUNER" connector
Operation: Direct control from transmitter's front panel
Memory channels: 16000
Antenna compatibility: Dipoles, verticals, Vees, beams, wire or any coax-fed antenna
Electrical data
Impedance: 5 - 1500 Ohm
Power range: 10 Watts
Tuning time: < 10 seconds (full tune)
Operating temperature: -10℃ ~ +60℃
Mechanical data
Input connector: BNC female
Output connector: BNC female
Length: 142 mm
Height: 67 mm
Width: 28 mm
Weight: 200 gram
Inside the box
Tuner: Yes
Installation manual: English
Control cable: 1x mAT-CF Control Cable (1 meter)
Coaxial cable: 1x mAT-CBB1M BNC Coaxial Cable (1 meter)
