SSB SMA-Female crimp Ecoflex-5
Delivery time:
Delivery time:
1-3 Business Days
SSB SMA-Female crimp Ecoflex-5 is backordered and will ship as soon as it is back in stock.
The SSB 7751-E SMA-Female crimp connector is a high-quality 50 Ω coaxial connector for professional RF and antenna applications. This SSB connector is suitable for Ecoflex-5 and H155 coaxial cable and combines a crimped outer conductor with a solderable center pin. The result is a robust, precisely fitting connection suitable for applications up to 12 GHz.
With its gold-plated metal construction, Teflon insulator, and wide temperature range, this SMA connector is an excellent choice for installations where a reliable connection and good electrical properties are important.
Professional SMA-Female connector for Ecoflex-5
A good coax connection starts with a connector that precisely matches the cable used. The SSB 7751-E is specifically designed for Ecoflex-5 and H155 and has an impedance of 50 Ω. The connector complies with IEC 60 169-15 and is suitable for at least 500 mating cycles according to the manufacturer.

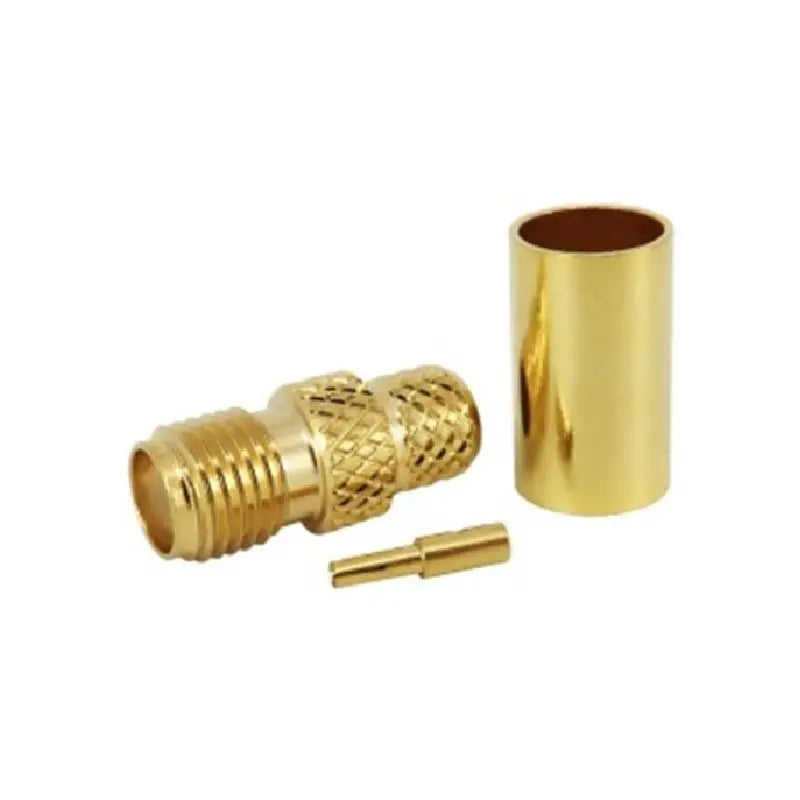

The housing is made of gold-plated brass, while the center pin consists of gold-plated beryllium copper (BeCu). The copper crimp sleeve is also gold-plated. The insulator is made of Teflon (PTFE). This choice of materials contributes to a dimensionally stable and reliable connection, even with widely fluctuating temperatures.
Key features:
- SMA-Female crimp connector for Ecoflex-5 and H155 coaxial cable
- 50 Ω impedance and suitable for frequencies up to 12 GHz
- Gold-plated brass housing, gold-plated BeCu center pin, and Teflon insulator
- Temperature range from -65 °C to +165 °C and protection class IP66
- RoHS-compliant and designed for at least 500 mating cycles
Crimp connector with soldered center pin
With this connector, the outer conductor of the coaxial cable is mechanically secured with the crimp sleeve. The center pin is soldered. SSB also recommends this combination for crimp connectors, because a soldered center pin can provide a reliable electrical connection with low losses in the long term – especially with temperature fluctuations.
This means the connector combines the ease of assembly and mechanical robustness of a crimp connector with a soldered connection of the inner conductor.
Low losses for professional RF applications

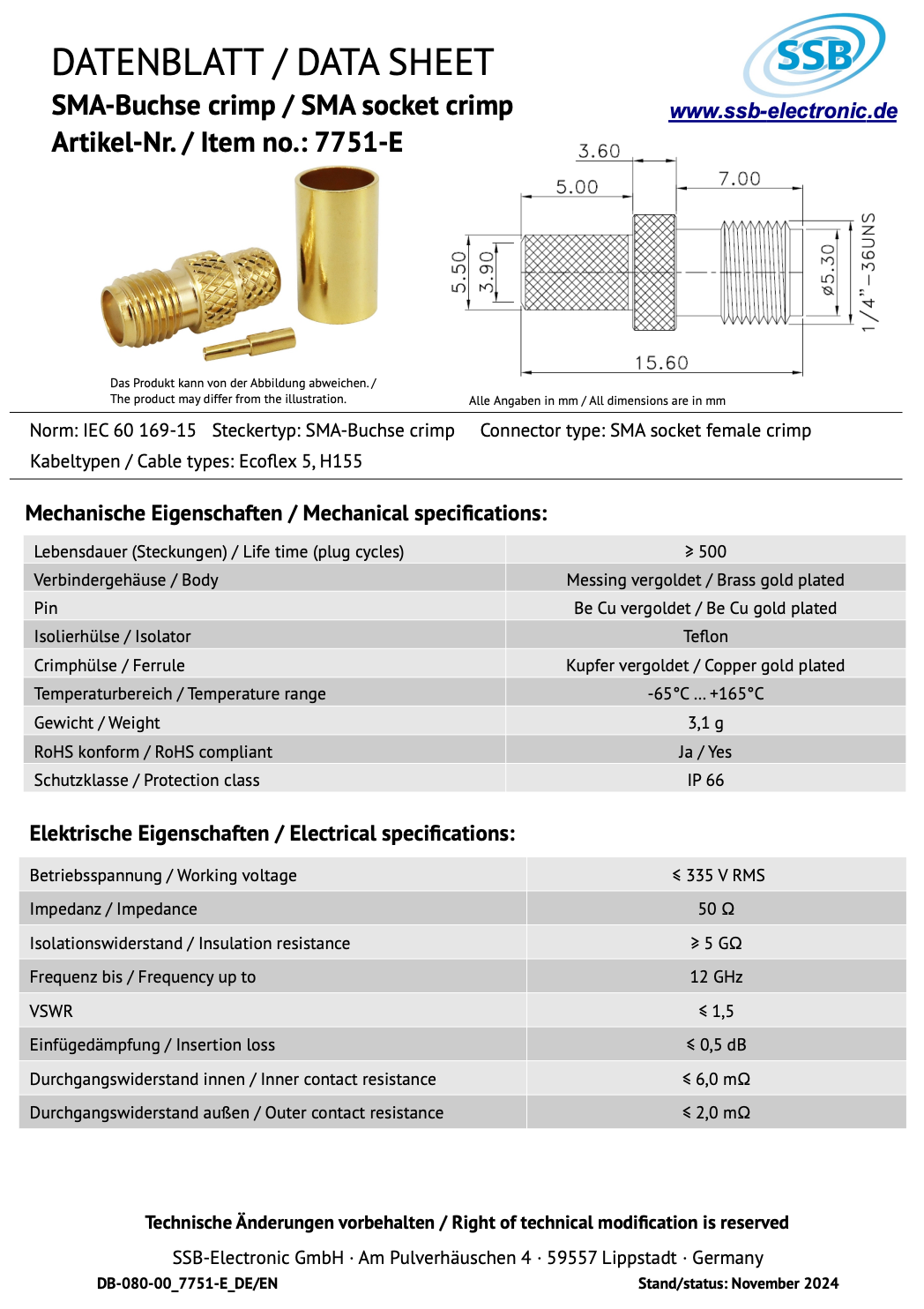

For RF installations, not only mechanical properties are important. The electrical performance of a connector also determines the quality of the connection. According to the datasheet, the SSB 7751-E has a VSWR of maximum 1.5 and an insertion loss of maximum 0.5 dB. The maximum operating voltage is 335 V RMS and the insulation resistance is at least 5 GΩ.
This makes this SMA-Female connector for Ecoflex-5 suitable for a wide range of professional coaxial, RF, and antenna installations where an SMA-Female connection is required.
Reliable quality from SSB
SSB connectors are designed for reliable coaxial connections and are manufactured from high-quality materials. The combination of gold-plated metal contact parts, a Teflon insulator, and precise mechanical dimensions contributes to a durable connection with good RF properties.
With a weight of only 3.1 grams, IP66 protection, and a specified temperature range of -65 °C to +165 °C, the 7751-E is also designed for use under various conditions.
Are you looking for a professional SMA-Female crimp connector for Ecoflex-5 or H155? Choose the SSB 7751-E and achieve a robust and reliable 50 Ω coaxial connection.
