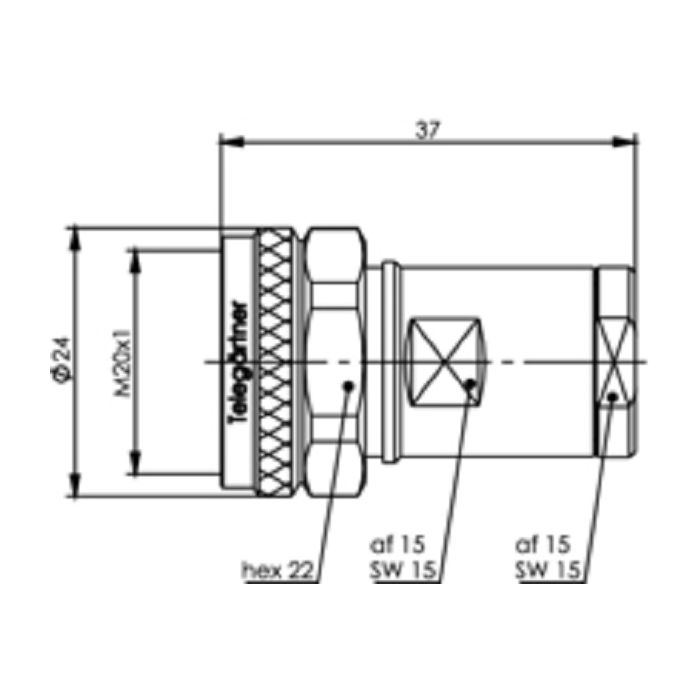

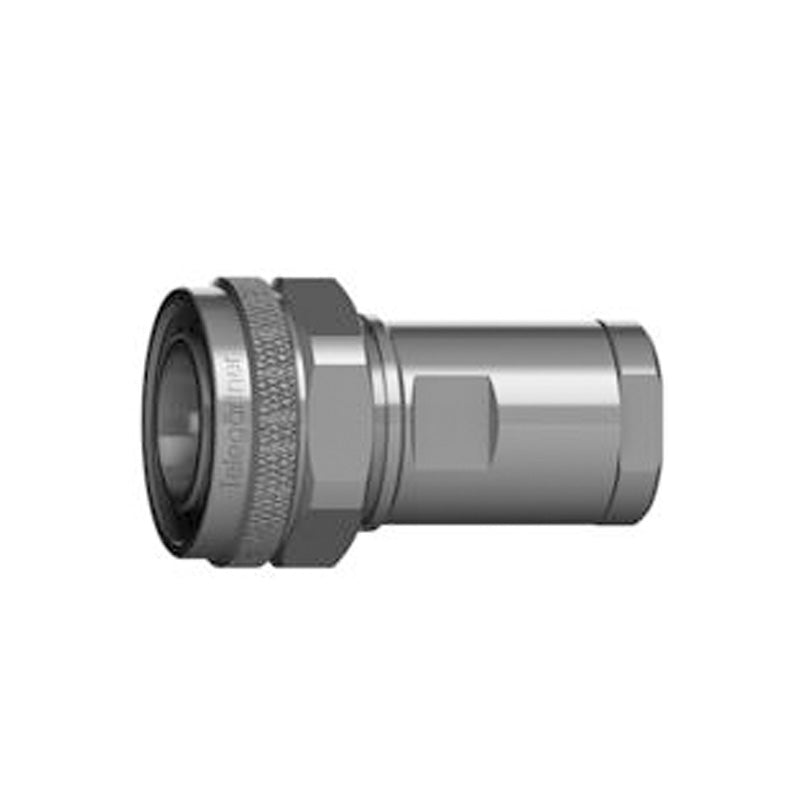

SSB Snap-In 4.3-10 clamp Aircom/Aircell-5/Ecoflex-10
Delivery time:
Delivery time:
1-3 Business Days
SSB Snap-In 4.3-10 clamp Aircom/Aircell-5/Ecoflex-10 is backordered and will ship as soon as it is back in stock.
About this product
About this product
This straight Snap-In 4.3-10 connector from SSB/ Telegärtner is designed for use with SSB Aircom Premium and SSB Aircell-5 coaxial cables. The connectors offer excellent performance and are widely used in outdoor applications for telecommunications, mobile communications, industry and radio equipment.
- Lowest Passive Intermodulation (PIM)
- Lower torque
- Maximum shock resistance of the connection during portable use
- Smaller dimensions than 7/16DIN connector and therefore higher packing density for flange mounting
- Always optimal contact pressure
- Fastest installation without tools
- With screwable, hand screwable and push-pull coupling mechanism
- Three plug variants with different locking technology, suitable for one opening
- Excellent electrical performance regardless of the mechanical connection
- Protection of the contact surfaces against damage, even when not connected
- For indoor and outdoor applications
This 4.3-10 clamp connector is suitable for
- Aircom Premium
- Ecoflex-10/Plus coaxial cable
Features
- Inner conductor: clamp
- Outer conductor: clamp
- Insertion cycles: >100
- Impedance: 50 Ohm
- Frequency: 0-6 GHz
- Return loss: typ.:
- 1GHz - 35dB;
- 2GHz - 32dB;
- 6GHz - 28dB
- 1GHz - 35dB;
- Operating voltage: ≤1.8 kVolt / 50 H
Assembly
Inner conductor: to clamp
Outer conductor: to clamp
Telegaertner : J01440A011
Telegrapher : 100025188
