In the world of radio antennas, optimal signal reception is crucial. However, the process isn't as simple as simply connecting the antenna elements to the radio. To understand the complexity, we need to explore the concept of baluns and ununs. In this blog post, we'll discuss what these components are, why they're important, and how they contribute to the efficient operation of your transmitting and receiving system.
What is a balun?
A balun, short for "balanced to unbalanced," is a device that converts a balanced signal into an unbalanced one. But what exactly does that mean? When an antenna receives a signal, it absorbs radio waves from the surrounding environment. This signal collects at the ends of each antenna element and creates charges at the feed node. These charges carry the desired signals we want to transmit to the radio.
The signals at the feed node are often in opposite phases, which is known as a balanced signal. While this is ideal for the antenna, it presents a challenge when connecting to the radio. The radio expects an unbalanced signal, with one conductor carrying the signal and the other grounded. The balun provides this necessary conversion.

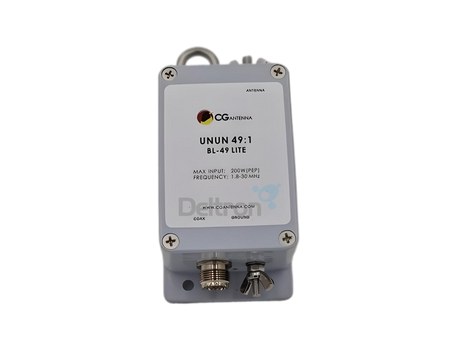

What is an unun?
An unun ("unbalanced to unbalanced") is a similar device, but is used to transform an impedance ratio between two unbalanced systems. Ununs are particularly useful for unsymmetrical antenna systems such as end-fed antennas or random-wire antennas, where a balanced feed is not required, but a correct impedance matching is.
Why are baluns and ununs important?
- Preventing sheath currents: Without a balun, unwanted current can flow over the outside of the coaxial cable, causing interference.
- Improved performance: Proper impedance matching increases the efficiency of your antenna.
- Equipment Protection: They limit RF current feedback to your transmitting equipment.
Different types and applications
- 1:1 Balun: For connecting a balanced antenna to a balanced power supply or for suppressing common mode currents.
- 4:1 Balun: Used to connect a high impedance antenna to a lower impedance feedline.
- 9:1 Unun: Suitable for end-fed antennas or random wire antennas with high impedance.
When do you use what?
- Use a balun with antennas such as dipoles, where you are dealing with balanced feed points.
- Use a unun with asymmetrical antennas, such as an end-fed wire, where impedance matching is needed without a balanced connection.
For radio amateurs, baluns and ununs aren't a luxury, but a necessity. They ensure a reliable connection, optimal signal transmission, and protect your equipment. By using the right type, you prevent interference and get the most out of your antenna system.

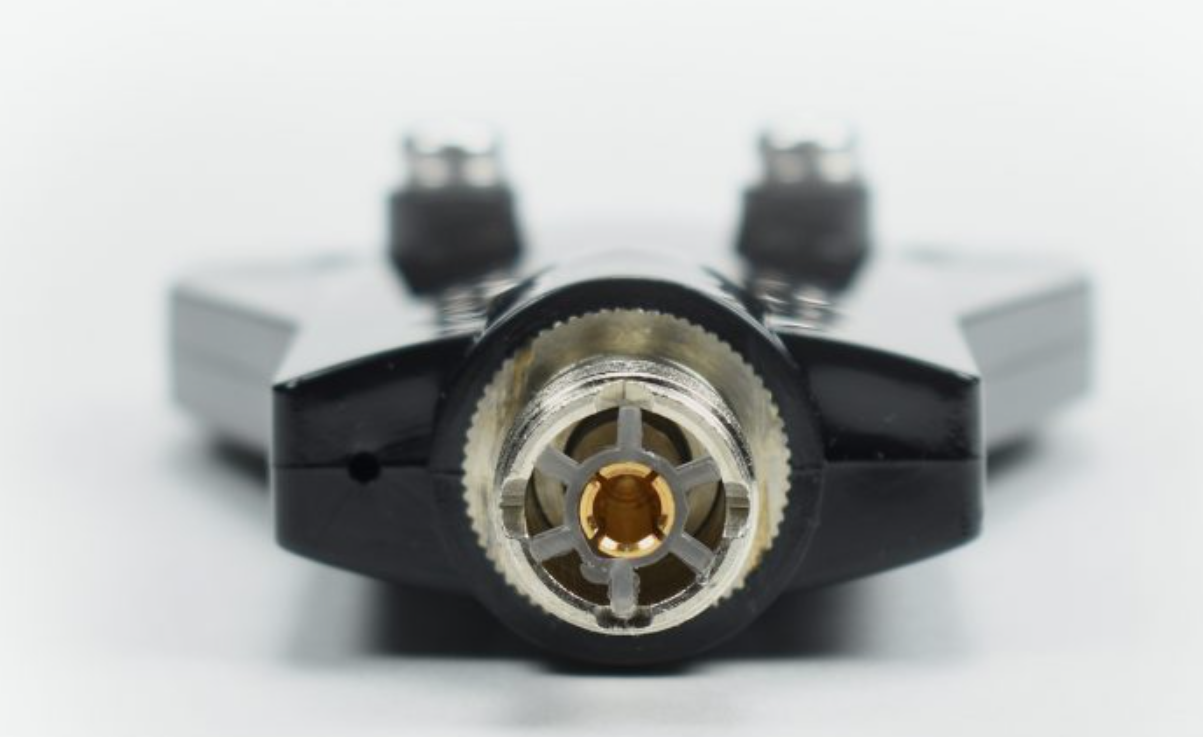

The image above shows three different types of baluns. The small, lightweight BL-01 and BL-04 baluns are suitable for 80m-10m, with a maximum power consumption of 100W (CW and SSB). Models with a 1:1 and 1:4 ratio are "standard" baluns. The bottom image shows the BL-09, a 1:9 balun (MTFT) with a ground screw on the side. The baluns have a PL terminal on the input side and a stainless steel M4 bolt on the output side.
The differences between baluns and ununs
The main difference between these two is that baluns are designed to match impedances between balanced and unbalanced circuits, while ununs match impedance between two unbalanced circuits.
Water tightness of baluns
Baluns are equipped with a plastic housing with a ventilation opening on the bottom. The housing is not glued and can be opened with a click system. Therefore, this housing is not permanently waterproof. If you would like tips or advice on waterproofing your balun, we recommend visiting a forum and reading a topic on the subject. The use of cast resin is strongly discouraged because it hardens, making it impossible to access for modifications, and because it doesn't always provide good reception.
The unbalanced solution
To correct this imbalance, we need a way to convert the balanced signal into an unbalanced one. This is where baluns come in. There are two commonly used designs: the coaxial balun and the coil balun.
The coil balun
With a coil balun, the feed nodes are connected to one coil of a transformer, so they operate in line. This arrangement allows current to be induced in the other coil of the transformer, which is then connected to the radio. This process converts the balanced signal into an unbalanced signal, enabling seamless communication between the antenna and the radio.
The coaxial balun
In the coaxial balun design, one feed node is connected to the other via a coaxial cable. The length of the cable is crucial in this setup, as it determines the delay in the signal from the first node. When the signal reaches the second node, both signals are perfectly in phase. This synchronized signal from both nodes is then transmitted to the radio, ensuring optimal reception.
The importance of a balun
Now that we understand how baluns work, let's explore their importance in radio systems. Baluns play a crucial role in ensuring efficient signal transmission and reception. Without a balun, connecting the antenna directly to the radio would result in signal cancellation and noise interference.
Maximizing your antenna's potential
Using a balun allows us to utilize the antenna's full potential. Connecting the antenna elements to the balun converts the balanced signal to an unbalanced signal, effectively transferring all signals to the radio. This optimization leads to improved signal clarity and overall performance.
Considerations
While we've covered the basics of baluns, there are additional factors to consider. Balun frequency tolerance and impedance matching are key aspects that influence their effectiveness.
The inside of a balun
Looking for the right balun or unun for your antenna project? Browse our extensive range at Deltron.nl and contact us for personalized advice from our experts.
Frequently Asked Questions
Where should a balun be placed?
A balun should be placed close to the antenna's feed point to effectively convert balanced signals into unbalanced signals. Ideally, it should be placed 10 to 20 feet from the tuner to minimize the unbalanced line length from the antenna to the balun.
Is a balun just a transformer?
While a balun functions like a transformer by converting balanced signals to unbalanced signals (and vice versa), baluns are specifically designed for radio antennas. Baluns ensure optimal signal transfer by isolating the transmission line and providing a balanced output, making them more specialized than typical transformers.
Does a balun reduce noise?
A balun can significantly reduce noise by preventing common-mode currents from flowing back down the coaxial cable from the antenna. Baluns also block unwanted noise picked up on the coax's outer sheath, effectively lowering the noise floor in your receiver for clearer signal reception.
Conclusion
Baluns are essential components in radio systems. They enable the conversion of a balanced signal to an unbalanced signal, ensuring optimal communication between the antenna and the radio. By understanding the principles of baluns, we can maximize the potential of our antennas and improve our overall radio experience. We are grateful for the contributions of individuals to open-source software because their contributions play a significant role in the advancement of radio technology.
Frequently asked questions about baluns and ununs
What is the difference between a balun and an unun?
A balun converts a balanced signal into an unbalanced signal (and vice versa), while an unun matches impedance between two unbalanced systems. Use a balun with symmetrical antennas such as dipoles, and an unun with asymmetrical antennas such as end-fed wire antennas.
Why do I need a balun for my antenna?
A balun prevents interference such as common mode currents, improves signal quality, and protects your transmitting equipment. Without a balun, RF feedback can occur, leading to noise and even damage to your radio.
What does a 1:1 balun do?
A 1:1 balun is used to suppress common mode currents and connect a symmetrical antenna to a coaxial cable. It is ideal for dipoles and other antennas with balanced feed points.
When do you use a 4:1 balun or a 9:1 unun?
A 4:1 balun is used for antennas with high impedance (e.g., 200 ohms) that you want to connect to a 50-ohm coax. A 9:1 balun is suitable for end-fed wire antennas and random wires with even higher impedances.
Where should I place the balun in my antenna system?
Place the balun as close as possible to the antenna's feed point. This ensures that the balanced signal is immediately converted to an unbalanced signal, which is essential for optimal operation.
Are baluns waterproof?
Not always. Most baluns have a plastic housing with a ventilation opening. This is splashproof, but not permanently waterproof. For moisture protection, you can take additional measures, such as waterproofing the balun without using cast resin.
Can a balun reduce noise?
Yes. A good balun prevents interference from entering your radio through the outer edges of the coaxial cable. This lowers the noise floor of your receiver, resulting in a clearer and cleaner signal.
What types of baluns are there?
There are several types of baluns, including coaxial baluns and coil baluns. The choice depends on your antenna type, application, and desired impedance matching.
